| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
705 pcs
|
705 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

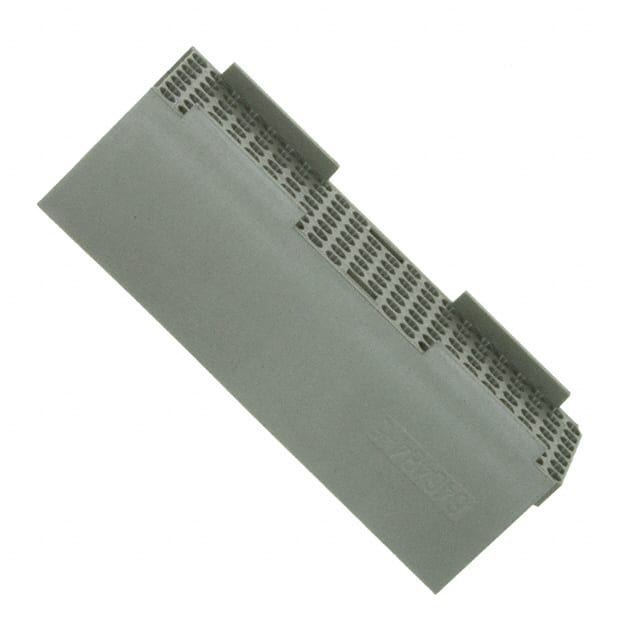

TE Connectivity 646484-5 is a connector shroud (housing) designed for male pin connectors in backplane interconnect systems. This Hard Metric Type AB22 shroud provides mechanical protection and alignment for the connector pins, ensuring reliable mating with the corresponding header.
The housing has 150 positions arranged in a 5+2 row pattern with a 2.00mm (0.079 inch) pitch. This compact grid spacing makes the component suitable for high-density backplane layouts commonly found in networking, telecommunications, and industrial computing equipment. The shroud is mounted using through-hole technology, providing a robust mechanical attachment to the printed circuit board.
The gray molded housing contributes to the standardization of the Hard Metric connector family and assists in keyed alignment during assembly. Designers should verify the mating connector and PCB footprint compatibility with the 2.00mm pitch.
| Qty | Low | High |
|---|---|---|
| 32+ | $2.54 | $2.54 |
| 224+ | $2.50 | $2.50 |
| 352+ | $2.46 | $2.46 |
| 672+ | $2.42 | $2.42 |
| 13,440+ | $2.75 | $2.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 646484-5 has 150 positions.
The pitch is 2.00mm (0.079 inches).
It uses through-hole mounting.
It is a shroud for male pins, Hard Metric Type AB22.
It has 5 + 2 rows.
The housing is gray.
