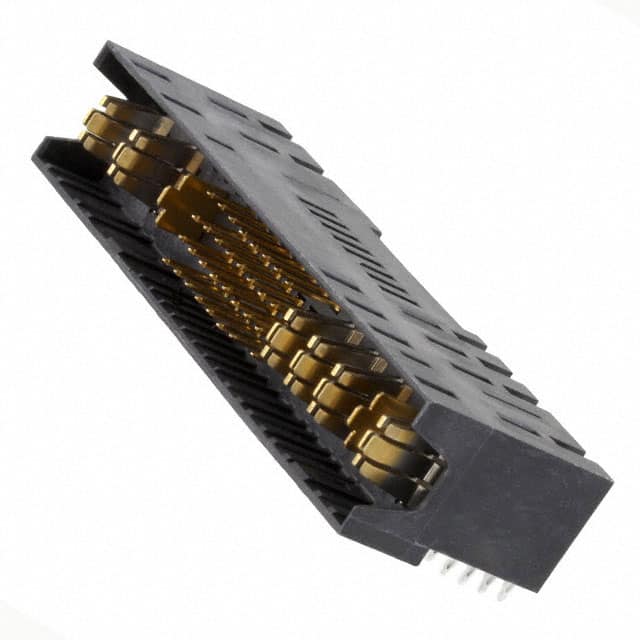

The TE Connectivity 6450849-7 is a Multi-Beam XLE header designed for high-current board-to-board power and signal applications. It features 40 positions arranged in 4 rows, with 32 signal contacts and 8 power contacts. The centerline pitch is 5.08 mm (0.200 in), and row-to-row spacing is 2.54 mm (0.100 in).
This header is rated for a maximum operating voltage of 60 VDC and a contact current rating of 50 A. Power contacts use tin material, while signal contacts have a noble metal mating area plating of 0.76 µm (30 µin) over a 5.33 µm underplate. Terminations are press-fit through-hole, with a termination post and tail length of 5.33 mm.
The housing is made of high temperature thermoplastic with a UL 94V-0 flammability rating, and is black in color. The connector mounts on the board edge with a right-angle orientation and includes PCB mount retention via action/compliant tail. Operating temperature range is -40 to 125 °C. The product is RoHS, REACH, and EU ELV compliant, but is not low halogen. Packaging is in trays.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.85 | $19.85 |
| 10+ | $17.38 | $17.38 |
| 25+ | $16.12 | $16.12 |
| 50+ | $15.45 | $15.45 |
| 99+ | $14.65 | $14.65 |
| 264+ | $14.01 | $14.01 |
| 528+ | $13.76 | $13.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions total (32 signal, 8 power).
The centerline pitch is 5.08 mm (0.200 inches).
The maximum contact current rating is 50 A.
The maximum operating voltage is 60 VDC.
Board edge, through hole, right angle with press-fit termination.
-40 to 125 °C.
High temperature thermoplastic housing with UL 94V-0 flammability rating.
