| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

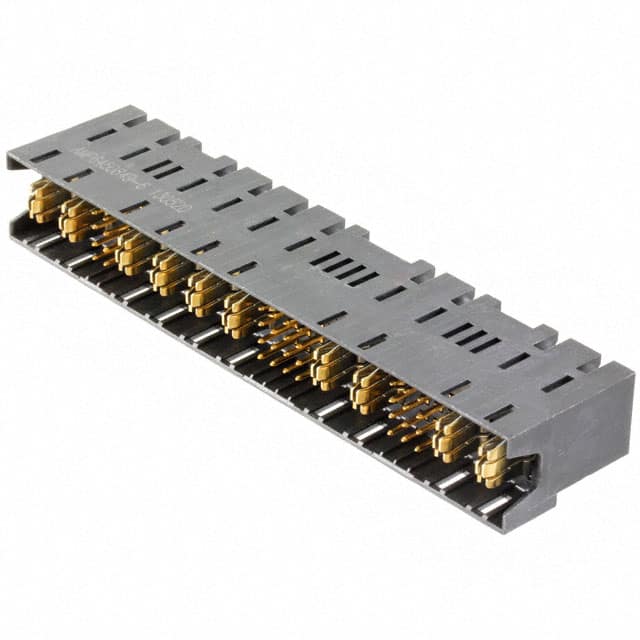

The 6450849-6 is a Multi-Beam header connector from TE Connectivity designed for backplane and power distribution applications. It features 44 positions arranged in 4 rows with a pin and blade contact type. The contact layout supports 36 signal and 10 power contacts.
The connector uses a press-fit termination for reliable solderless assembly. It mounts to the board edge with right angle orientation, facilitating compact system designs. The contact finish is gold with a thickness of 30.0 microinches (0.76 micrometers), ensuring low contact resistance and corrosion resistance.
The housing is black and the connector is rated RoHS3 compliant and REACH unaffected. Moisture sensitivity level is MSL 1 (unlimited). Design engineers should note the 2.54mm pitch and the right angle exit for PCB layout planning.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.91 | $25.91 |
| 22+ | $20.83 | $20.83 |
| 44+ | $19.84 | $19.84 |
| 66+ | $19.28 | $19.28 |
| 110+ | $18.59 | $18.59 |
| 264+ | $17.48 | $17.48 |
| 506+ | $16.70 | $16.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Header, Male Pins and Blades.
44 positions, all loaded.
2.54mm (0.100 inches).
Board edge, through hole, right angle mounting.
Press-fit termination.
Gold with 30.0 microinches (0.76 micrometers) thickness.
