| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:28:29 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Features | |
| Halogen Free | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Termination |

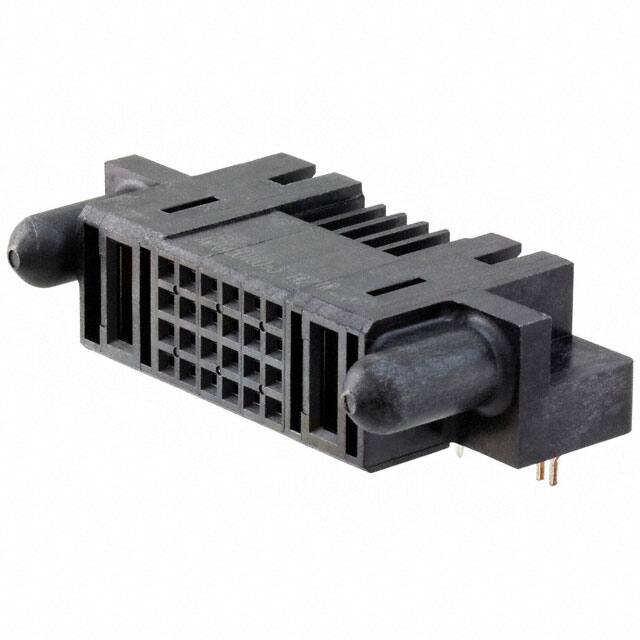

The TE Connectivity 6450160-3 is a Multi-Beam receptacle connector designed for backplane applications. It provides 26 total positions with a contact layout of 24 signal and 2 power contacts, arranged in 4 rows on a 2.54mm pitch. The connector features a through hole, right angle mounting style with solder termination. It includes board lock and guide pin features for secure alignment and retention on the PCB.
Contacts are finished with 30µin (0.76µm) gold plating to ensure reliable, corrosion-resistant connections. The housing is black in color. As part of the Multi-Beam series, this connector is suitable for high-density backplane systems requiring mixed signal and power distribution. The right angle design allows for efficient board-to-board or cable-to-board configurations.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.46 | $8.46 |
| 10+ | $7.19 | $7.19 |
| 25+ | $6.74 | $6.74 |
| 55+ | $6.38 | $6.38 |
| 110+ | $6.06 | $6.06 |
| 275+ | $5.67 | $5.67 |
| 550+ | $5.41 | $5.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions, all loaded.
2.54mm (0.100").
Through hole, right angle.
4 rows.
24 signal and 2 power contacts.
Gold plating, 30µin thickness.
Board lock and guide pin.
