| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Current Rating (Max) | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Voltage | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

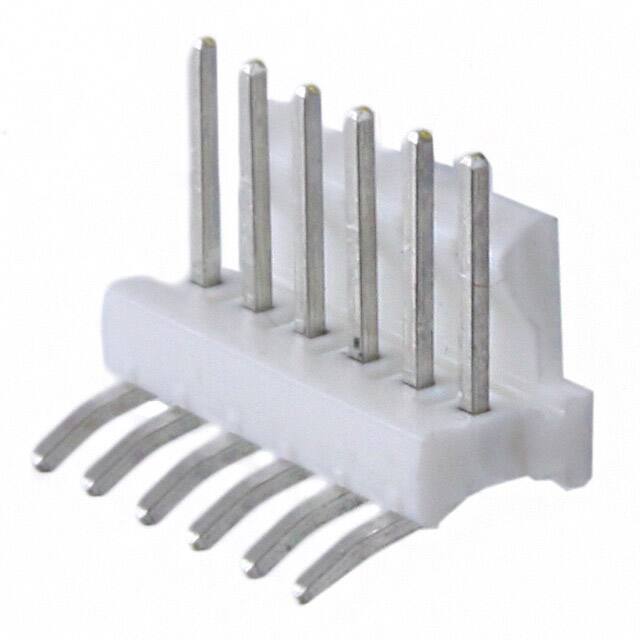

The TE Connectivity 644875-6 is a 6-position, single-row, right-angle header from the MTA 100 series. It features a 2.54mm (0.100") pitch, tin-plated square pins, and a natural thermoplastic housing. The connector is partially shrouded (1 wall) and includes a friction lock for secure mating.
This header is designed for through-hole mounting with solder termination, making it suitable for wire-to-board applications. The contacts are made of copper alloy with a tin finish, and the contact mating area length is 7.49mm (0.295"). The operating voltage is 250VAC, and the current rating is 5A per contact, with an operating temperature range of -55°C to 105°C.
The housing is made of UL94 V-0 rated thermoplastic, providing good flammability resistance. The connector is RoHS3 compliant (unverified) and has an MSL of 1. It is commonly used in various electronic devices requiring reliable board-to-cable connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.85 | $0.85 |
| 10+ | $0.85 | $0.85 |
| 1,000+ | $0.82 | $0.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions in a single row.
2.54mm (0.100").
5A per contact.
250VAC.
Through hole, right angle.
-55°C to 105°C.
Yes, it has a 1-wall shrouded design.
