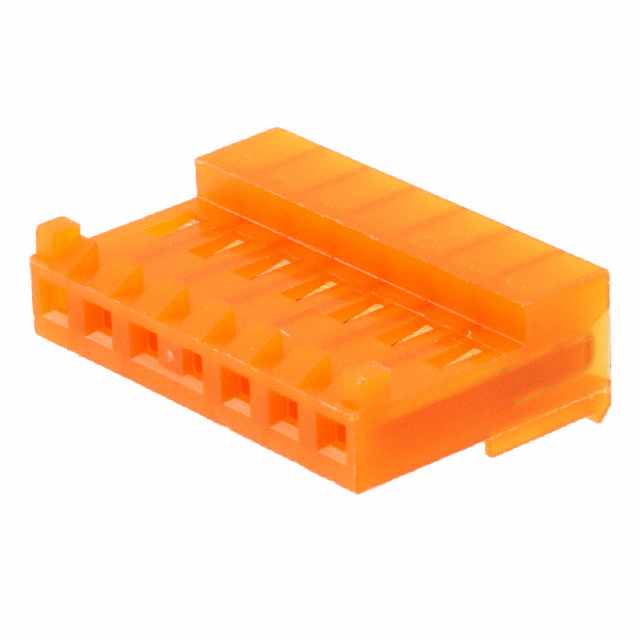

644460-7 TE Connectivity 644460-7 is a 7-position IDC receptacle connector with gold-plated contacts. It features a 3.96mm pitch, locking ramp fastening, and is suitable for 18 AWG discrete or ribbon cable.
Mfr Part #:

644460-7

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 644460-7 is a 7-position IDC receptacle connector with gold-plated contacts. It features a 3.96mm pitch, locking ramp fastening, and is suitable for 18 AWG discrete or ribbon cable.
✓ Total Stock: 600 pcs

644460-7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
600 pcs
On Request
600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

644460-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Fastening Type
Features
Lead Spacing
Mounting Type
Number of Positions
Number of Rows
Pitch
Termination Style
Wire Gauge
Wire Type
View Similar Products (0)

644460-7 Description

Short technical summary and product information.

The TE Connectivity 644460-7 is a rectangular connector receptacle designed for free hanging (in-line) mounting. It features 7 positions in a single row with a 3.96mm pitch. The connector uses IDC (Insulation Displacement Connection) termination for 18 AWG wire, supporting both discrete and ribbon cable types. Contacts are gold-plated with a thickness of 30.0µin (0.76µm) for reliable conductivity. The housing is orange and includes a closed end with polarizing key for correct orientation. Fastening is via a locking ramp mechanism. This connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is suitable for wire-to-board or wire-to-wire applications requiring a compact, reliable connection.

644460-7 Quick Information

Product Type: Receptacle Connector
Canonical Name: TE Connectivity 644460-7 Rectangular Connector - Receptacle, 7 Position, IDC, 18 AWG, Gold
Subcategory: IDC Receptacle Connector

644460-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

644460-7 Features

  • 7 positions in single row.
  • 3.96mm pitch for compact design.
  • IDC termination for 18 AWG wire.
  • Gold-plated contacts for reliability.
  • Locking ramp fastening for secure connection.

644460-7 Applications

  • Suitable for discrete or ribbon cable.
  • Ideal for wire-to-board connections.
  • Used in free hanging applications.
  • Polarizing key ensures correct orientation.

644460-7 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 644460-7 connector have?

7 positions in a single row.

What is the pitch of the 644460-7?

3.96 mm (0.156 inches).

What is the mounting type of this connector?

Free hanging (in-line) mounting.

What termination style does the 644460-7 use?

IDC (Insulation Displacement Connection) for 18 AWG wire.

What wire gauge is compatible with this connector?

18 AWG wire, suitable for discrete or ribbon cable.

What is the contact finish on the 644460-7?

Gold, 30.0µin (0.76µm) thickness.

What fastening type does this connector have?

Locking ramp for secure mating.
