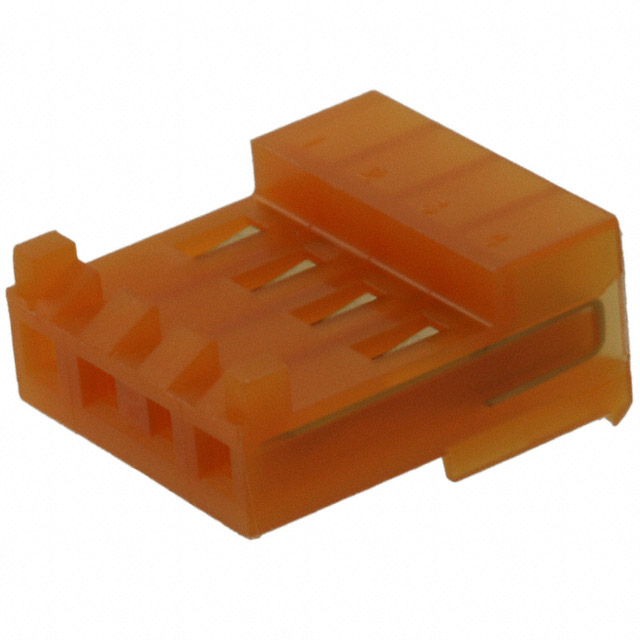

644460-4 TE Connectivity 644460-4 is a 4-position, single-row IDC receptacle connector with a 3.96mm pitch. It supports 18 AWG wire, has gold contacts, and features free-hanging (in-line) mounting with a locking ramp.
Mfr Part #:

644460-4

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 644460-4 is a 4-position, single-row IDC receptacle connector with a 3.96mm pitch. It supports 18 AWG wire, has gold contacts, and features free-hanging (in-line) mounting with a locking ramp.
✓ Total Stock: 152 pcs
$ Price Range: $1.12

644460-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
152 pcs
On Request
152 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

644460-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Fastening Type
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Wire Gauge
Wire Type
View Similar Products (0)

644460-4 Description

Short technical summary and product information.

The TE Connectivity 644460-4 is a 4-position, single-row IDC receptacle connector from the MTA-156 series. It features a 3.96mm (0.156 inch) pitch and is designed for 18 AWG discrete or ribbon cable. The connector uses IDC termination, eliminating the need for stripping and crimping wires. Its free-hanging (in-line) mounting style allows for quick cable-to-board or cable-to-cable connections.



This receptacle includes a closed end and polarizing key to ensure correct orientation and prevent mis-mating. The gold contact finish, with a thickness of 30 microinches (0.76 µm), provides reliable electrical performance and corrosion resistance. A locking ramp secures the connection, and the orange housing offers visual identification for easy assembly.

644460-4 Quick Information

Product Type: IDC Receptacle Connector
Series: MTA-156
Canonical Name: TE Connectivity 644460-4 4-Position 3.96mm IDC Receptacle Connector
Subcategory: IDC Receptacle

644460-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

644460-4 Estimated Pricing

Qty Low High
2,000+ $1.12 $1.12

Estimated market price range - modelled values for guidance only, not live distributor offers.

644460-4 Features

  • 4-position single-row IDC receptacle connector.
  • 3.96mm pitch for compact wiring.
  • Supports 18 AWG discrete wire.
  • Gold contact finish for reliability.
  • Locking ramp for secure fastening.

644460-4 Applications

  • Connects discrete or ribbon cable wires.
  • Free hanging in-line mounting style.
  • Polarizing key ensures correct orientation.
  • Locking ramp provides secure retention.

644460-4 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TE Connectivity 644460-4 connector have?

It has 4 positions.

What is the pitch of this connector?

The pitch is 3.96mm (0.156 inches).

What mounting type does this connector use?

It uses free hanging (in-line) mounting.

What wire gauge does this connector support?

It supports 18 AWG wire.

What termination method does this connector use?

It uses IDC (Insulation Displacement Connection) termination.

What contact finish is available?

The contact finish is gold with 30 microinches (0.76 µm) thickness.

Does this connector have a polarizing key?

Yes, it features a polarizing key and closed end design.
