| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Failure Rate | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

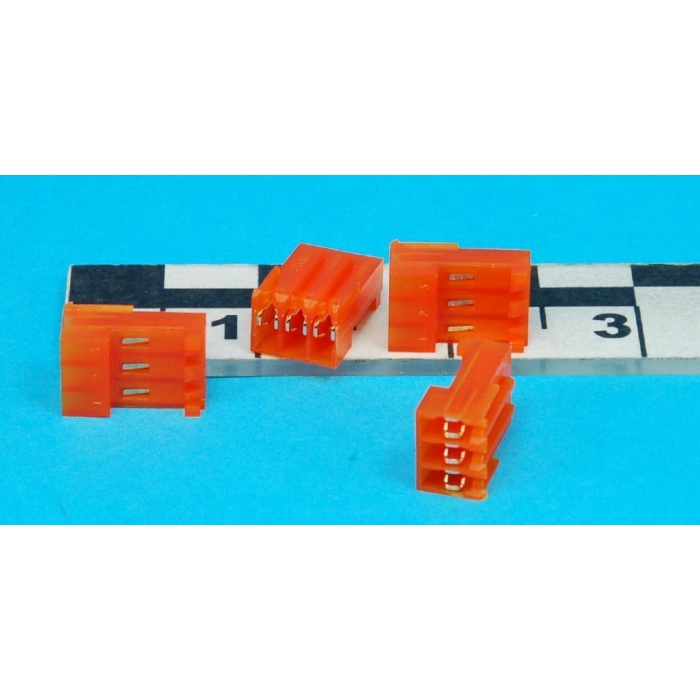

The TE Connectivity 644460-3 is a 3-position IDC receptacle connector from the MTA-156 series. It is designed for free hanging (in-line) mounting and uses insulation displacement contact (IDC) termination for 18 AWG wire, suitable for discrete or ribbon cable applications.
The connector features a single row of 3 female socket contacts with a 3.96mm (0.156") pitch. Contacts are gold plated with a thickness of 30.0µin (0.76µm). The housing is orange and includes a locking ramp fastening type for secure mating, along with a closed end and polarizing key to ensure correct orientation.
This connector is commonly used in wire-to-board or wire-to-wire applications where reliable, mass-termination of discrete wires is required. The IDC termination allows for quick assembly without stripping or soldering.
3 positions.
3.96mm (0.156").
Free hanging (in-line).
18 AWG.
IDC (Insulation Displacement Connection).
Gold with 30.0µin (0.76µm) thickness.
Orange.
