644460-2 The TE Connectivity 644460-2 is a 2-position IDC receptacle with gold contacts. It features a 3.96mm pitch, locking ramp fastening, and is designed for 18 AWG discrete or ribbon cable.
Mfr Part #:

644460-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity 644460-2 is a 2-position IDC receptacle with gold contacts. It features a 3.96mm pitch, locking ramp fastening, and is designed for 18 AWG discrete or ribbon cable.
✓ Total Stock: 1,132 pcs

644460-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,132 pcs
On Request
1132 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

644460-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Fastening Type
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Termination Style
Wire Gauge
Wire Type
View Similar Products (0)

644460-2 Description

Short technical summary and product information.

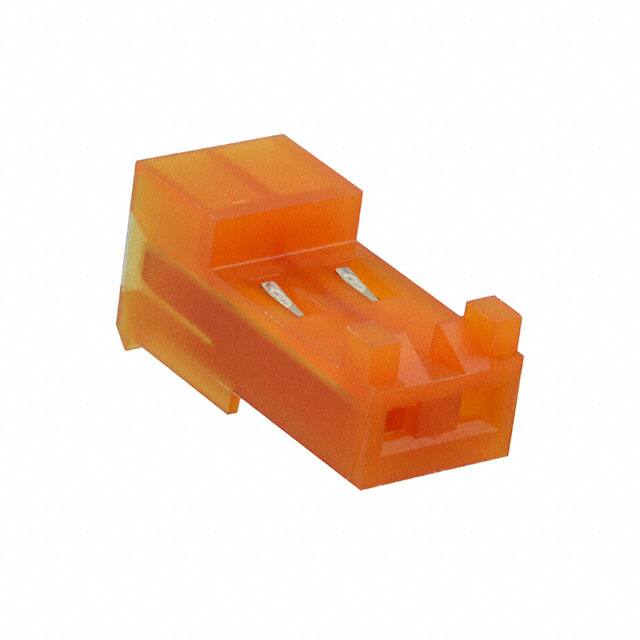

The TE Connectivity 644460-2 is a 2-position IDC receptacle designed for wire-to-board or cable-to-board connections. It features a 3.96mm (0.156") pitch and accepts 18 AWG discrete or ribbon cable. The contacts are female sockets with gold finish (30.0µin) for reliable conductivity. Termination is via IDC (Insulation Displacement Connection) for quick assembly without stripping. The housing is orange and includes a locking ramp for secure mating and a polarizing key for correct orientation. The connector is free hanging (in-line) mounting. It is a closed end design, preventing contact with unintended wires. This connector is suitable for internal wiring in various electronic applications.

644460-2 Quick Information

Product Type: IDC Receptacle
Canonical Name: 2 Position Single Row 3.96mm Pitch IDC Receptacle, Female Socket, Gold, 18 AWG, Free Hanging, Orange
Subcategory: IDC Receptacle

644460-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

644460-2 Features

  • 2-position IDC receptacle with 3.96mm pitch.
  • Gold-plated contacts for reliable connectivity.
  • Free hanging mounting with locking ramp.
  • Accepts 18 AWG discrete or ribbon cable.
  • Closed end design with polarizing key.

644460-2 Applications

  • Connects discrete wires to a board header.
  • Used in cable harnesses for signal transmission.
  • Appropriate for ribbon cable connections.

644460-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

2 positions.

What is the pitch?

3.96mm (0.156").

What mounting type is supported?

Free hanging (in-line).

What wire gauge is compatible?

18 AWG.

What is the contact finish?

Gold with 30.0µin thickness.

What termination method is used?

IDC (Insulation Displacement Connection).

Does the connector have any special features?

Closed end and polarizing key.
