| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
768 pcs
|
768 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Wire Gauge | |
| Wire Type |

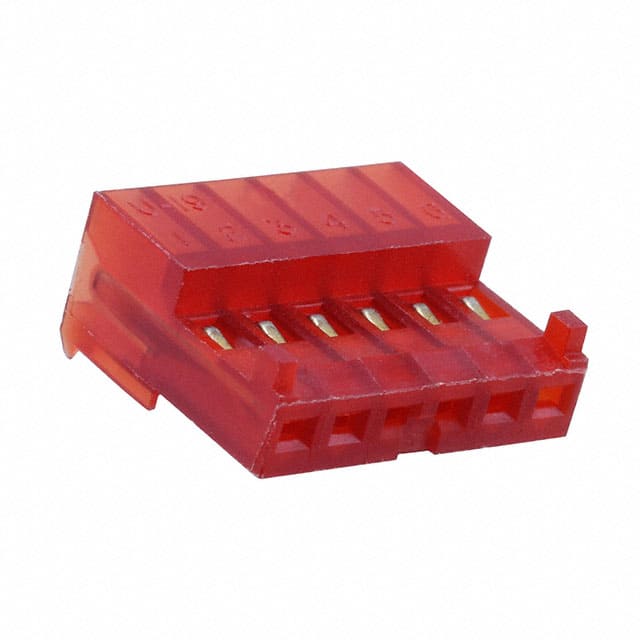

The TE Connectivity 644042-6 is a 6-position IDC receptacle connector designed for discrete or ribbon cable termination. It features a single row of female socket contacts with gold plating (30.0µin thickness) for reliable connections. The connector is free hanging (in-line) with a right angle orientation and uses a locking ramp fastening mechanism. It accepts 22 AWG wire and is terminated via IDC (Insulation Displacement Connection) method. The closed end feature prevents incorrect insertion. The connector is red in color and has a 2.54mm pitch. It is available in RoHS3 compliant (unverified) and has an MSL of 1. This connector is suitable for applications requiring a compact, reliable interconnection for wire-to-board or wire-to-wire setups.
| Qty | Low | High |
|---|---|---|
| 2,000+ | $1.89 | $1.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
2.54mm (0.100").
Free hanging (in-line) with right angle orientation.
22 AWG wire.
Gold plating with 30.0µin (0.76µm) thickness.
IDC (Insulation Displacement Connection).
Locking ramp.
