| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

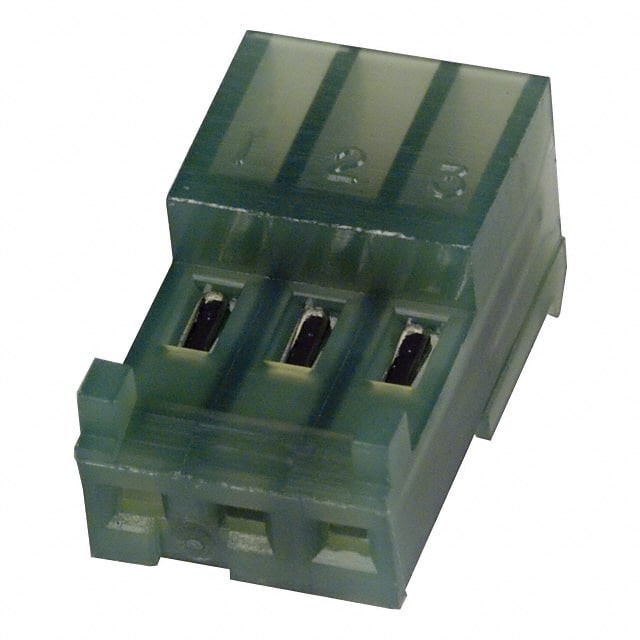

TE Connectivity 643816-3 is a 3-position single-row IDC receptacle connector designed for free-hanging (in-line) right-angle mounting. It features female socket contacts with a tin-lead finish (80.0µin/2.03µm) and a locking ramp fastening mechanism. The connector supports 28 AWG wire with discrete or ribbon cable termination via IDC, and has a 2.54mm (0.100") pitch.
With a green insulator and closed-end construction, this connector is suitable for wire-to-board or wire-to-wire applications requiring a compact, reliable interface. The IDC termination simplifies assembly by eliminating the need for stripping or soldering, making it ideal for high-volume production.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
| 10+ | $0.16 | $0.16 |
| 25+ | $0.15 | $0.15 |
| 50+ | $0.14 | $0.14 |
| 100+ | $0.13 | $0.13 |
| 250+ | $0.12 | $0.12 |
| 500+ | $0.12 | $0.12 |
| 1,000+ | $0.11 | $0.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
2.54mm (0.100").
Free hanging (in-line) right angle.
28 AWG.
IDC (Insulation Displacement Connection).
Tin-lead, 80.0µin (2.03µm).
Yes, it uses a locking ramp fastening type.
