| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
104 pcs
|
104 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

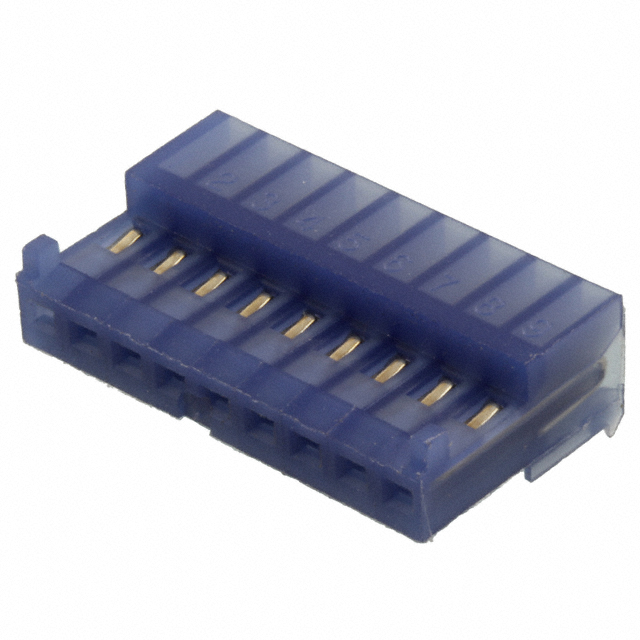

The TE Connectivity 643815-9 is a 9-position IDC receptacle designed for reliable cable-to-board connections. It features a single row of female socket contacts with a 2.54mm (0.100") pitch, making it suitable for standard ribbon cable and discrete wire applications.
The connector supports 26 AWG wire and uses IDC termination for quick, insulation-displacement connections without stripping. The free hanging (in-line) right angle mounting style allows for flexible routing in tight spaces, while the locking ramp fastening ensures a secure connection.
Contacts are finished with tin-lead plating at 80.0µin (2.03µm) thickness, providing a reliable electrical interface. The blue housing and closed end design help protect the contacts and guide cable insertion.
This connector is commonly used in internal wiring applications where space is limited and a compact, reliable interconnect is required.
The 643815-9 has 9 positions in a single row.
The pitch is 2.54mm (0.100").
The 643815-9 is a free hanging (in-line) right angle connector.
The 643815-9 is designed for 26 AWG wire.
The 643815-9 uses IDC (Insulation Displacement Connection) termination.
The contacts have a tin-lead finish with a thickness of 80.0µin (2.03µm).
The 643815-9 is compatible with discrete or ribbon cable.
