| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,143 pcs
|
9143 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

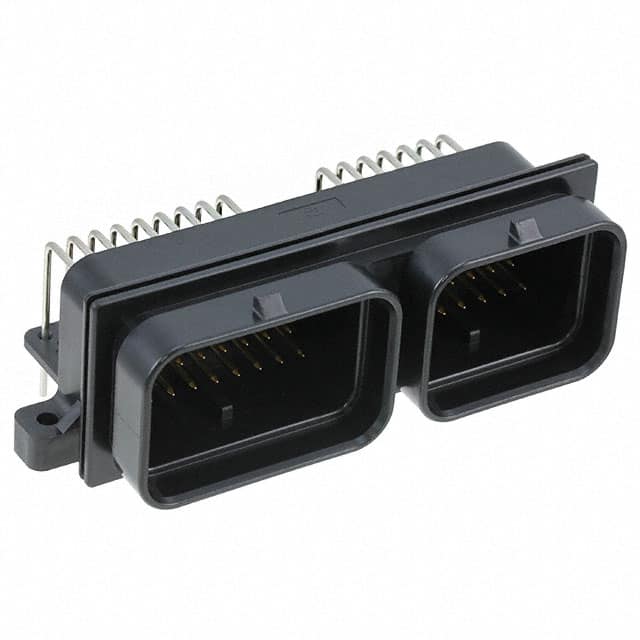

The TE Connectivity 6437288-3 is a 60-position shrouded header designed for board-to-cable/wire applications. It uses male pin contacts with a 3.00mm pitch and is configured in 4 rows. The connector is rated for 250V and has an operating temperature range of -40°C to 125°C.
Constructed with a brass contact material finished with tin, the header provides reliable solder termination. The insulator is made of polyester, and the design includes a shrouded 4-wall housing for pin protection. A locking ramp fastening type helps secure the mating connection.
The connector is mounted through hole with a right angle orientation and includes a mounting flange. All 60 positions are loaded. Compliance includes RoHS3, MSL 1, and REACH unaffected status, though these are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.20 | $21.20 |
| 8+ | $18.99 | $18.99 |
| 24+ | $18.59 | $18.59 |
| 56+ | $17.97 | $17.97 |
| 104+ | $17.27 | $17.27 |
| 256+ | $16.85 | $16.85 |
| 504+ | $16.03 | $16.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TE Connectivity 6437288-3 header has 60 positions, arranged in 4 rows with a 3.00mm pitch.
The pitch is 3.00mm.
The voltage rating is 250V.
The mounting type is Through Hole, Right Angle.
The operating temperature range is -40°C to 125°C.
The termination method is solder.
