| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
138 pcs
|
138 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Type |

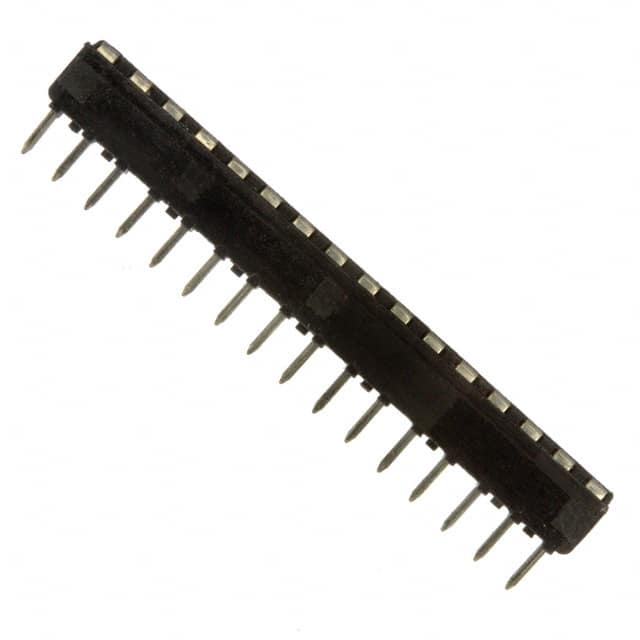

The TE Connectivity 643648-1 is a 16-position single in-line (SIP) IC socket designed for through-hole mounting. It features a 2.54mm (0.100") pitch, making it compatible with standard DIP and SIP packages. The socket uses tin-plated beryllium copper contacts for reliable electrical connections and a glass-filled thermoplastic housing for durability.
This closed-frame socket operates over a temperature range of -55°C to 105°C, suitable for a wide variety of industrial and commercial applications. The solder termination style ensures straightforward assembly onto printed circuit boards.
Typical applications include prototyping, programming, and production where easy insertion and removal of ICs is required. The closed-frame design provides mechanical protection for the contacts during handling.
The pitch is 2.54mm (0.100").
It has 16 positions arranged in a single row (1 x 16).
Through-hole mounting with solder termination.
-55°C to 105°C.
Beryllium copper with a tin finish.
Glass-filled thermoplastic.
