| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
593 pcs
|
593 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination |

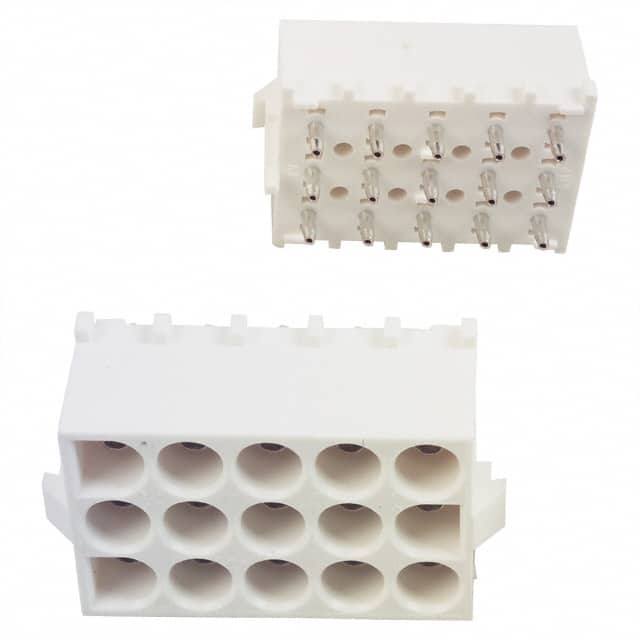

This is a 15-position rectangular connector header from TE Connectivity, designed for board-to-cable/wire applications. It features female socket contacts with tin finish, arranged in 3 rows with a pitch of 6.35mm (0.250") and row spacing of 6.35mm.
The connector uses through hole mounting with solder termination. It has a natural insulation color, insulation height of 14.73mm (0.580"), and contact length of 3.94mm (0.155"). The housing is made of UL94 V-2 rated material.
The header includes a locking ramp fastening type and a board guide feature for alignment. It operates over a temperature range of -40°C to 105°C. All 15 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.91 | $2.91 |
| 78+ | $2.14 | $2.14 |
| 156+ | $2.03 | $2.03 |
| 546+ | $1.86 | $1.86 |
| 1,014+ | $1.78 | $1.78 |
| 5,070+ | $1.59 | $1.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions, all loaded.
6.35mm (0.250").
Through hole with solder termination.
-40°C to 105°C.
Tin.
3 rows.
14.73mm (0.580").
