| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
59 pcs
|
59 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | 2026-06-03 03:15:56 |
| Category | |
| Manufacturer Name | |
| CSA Rating | |
| Circuit Application | |
| Connector & Housing Type | |
| Connector System | |
| Connector Type | |
| Contact Current Rating (Max) | |
| Contact Finish | |
| Contact Length | |
| Contact Mating Area Plating Material Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Height | |
| Housing Material | |
| Insulation Color | |
| Insulation Height | |
| Length | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Voltage | |
| PCB Mount Orientation | |
| PCB Thickness Recommended | |
| Packaging Method | |
| Pitch | |
| Sealable | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Method | |
| UL Flammability Rating | |
| VDE Tested | |
| Width |

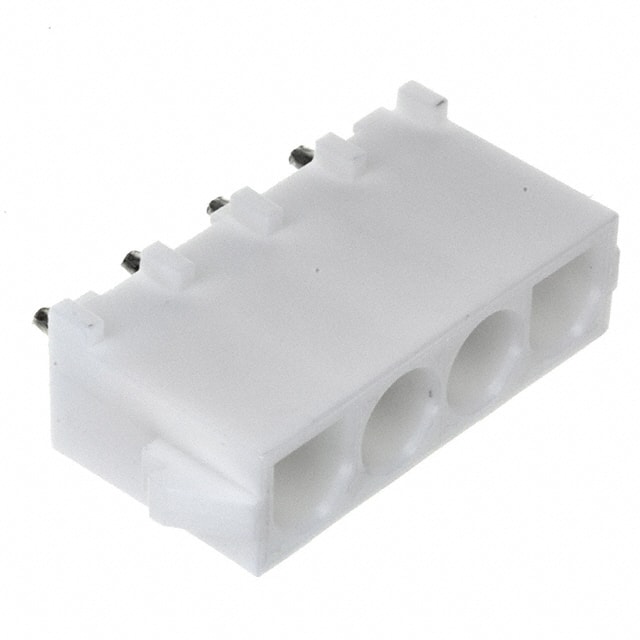

The TE Connectivity 643416-1 is a Universal MATE-N-LOK rectangular power connector header receptacle designed for wire-to-board applications. It features 4 positions in a single row with a 6.35mm pitch, making it suitable for power distribution in a variety of electronic assemblies.
This through hole connector is rated for 12A maximum current and 600VAC operating voltage. The housing is made of nylon with a UL94 V-0 flammability rating, and the contacts are pre-tin plated with a mating area plating thickness of 3.81 – 5.08 µm. The connector includes a locking ramp fastening type and a board guide feature for secure mating.
The operating temperature range is -40°C to 105°C, and the connector is not sealable. It is packaged in a bag and is RoHS3 compliant (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.72 | $0.72 |
| 10+ | $0.61 | $0.61 |
| 25+ | $0.59 | $0.59 |
| 100+ | $0.50 | $0.50 |
| 300+ | $0.44 | $0.44 |
| 1,000+ | $0.42 | $0.42 |
| 2,500+ | $0.38 | $0.38 |
| 5,000+ | $0.36 | $0.36 |
| 10,000+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 4 positions in a single row.
The pitch is 6.35 mm.
The maximum contact current rating is 12 A.
The operating voltage is 600 VAC.
The connector uses through hole mounting with solder termination.
The operating temperature range is -40°C to 105°C.
The housing is made of nylon with a UL94 V-0 flammability rating.
