| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,120 pcs
|
1120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
199 pcs
|
199 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:21:26 | On Request | On Request | |
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | 1018 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Style | |
| Termination | |
| Termination Style |

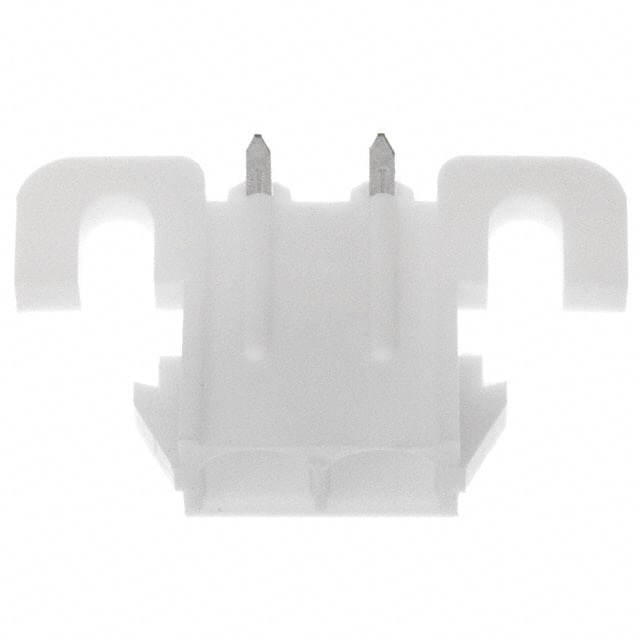

The TE Connectivity 643226-1 is a 2-position header designed for board-to-cable/wire applications. It features female socket contacts on a single row with a 6.35mm (0.250") pitch. The connector is configured for through hole right angle mounting and uses solder termination. The contacts have a tin finish and a contact length of 4.06mm (0.160").
The housing is made from a material rated UL94 V-0 for flammability, and the insulation color is natural. A locking ramp fastening type secures the mating connection. The part includes a mounting flange for additional mechanical stability..
The connector is intended for applications requiring a reliable, polarized connection between a printed circuit board and discrete wires. Its right angle orientation allows for low-profile routing of cables parallel to the board surface.
It has 2 positions on a single row, all positions loaded.
The pitch is 6.35mm (0.250 inches).
It uses through hole right angle mounting with solder termination.
The contact finish is tin.
It is rated UL94 V-0.
Yes, it has a locking ramp fastening type.
