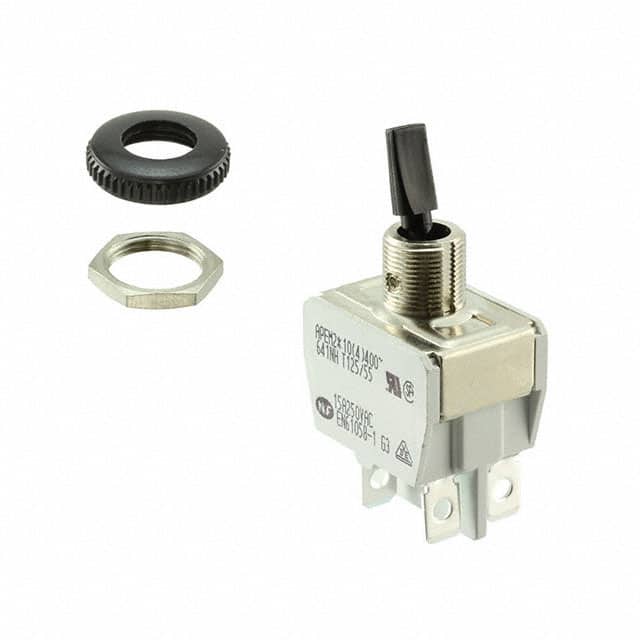

641NH/2 The APEM Inc. 641NH/2 is a DPST toggle switch rated for 15A at 250V. It features a panel mount design with quick connect termination.
Mfr Part #:

641NH/2

Available from 1 distributors
Mfr Name: APEM Inc.
APEM Inc.
The APEM Inc. 641NH/2 is a DPST toggle switch rated for 15A at 250V. It features a panel mount design with quick connect termination.
✓ Total Stock: 7 pcs
$ Price Range: $0.75

641NH/2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

641NH/2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Bushing Thread
Circuit
Current Rating (Amps)
Illumination
Insulation Resistance
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

641NH/2 Description

Short technical summary and product information.

The APEM Inc. 641NH/2 is a robust toggle switch designed for high amperage applications. It features a Double Pole Single Throw (DPST) circuit configuration and is rated to handle 15A at 250VAC.



This switch is designed for panel mounting with a M12 x 0.75 bushing thread and requires a circular panel cutout of 12.20mm diameter. The termination style is quick connect, measuring 0.250" (6.3mm).



With an operating temperature range of -20°C to 55°C, the 641NH/2 is suitable for various industrial and commercial environments. Its actuator is flatted and non-illuminated, providing a clear and reliable switching action.



The switch boasts an initial contact resistance of 10 mΩ max. and an insulation resistance of 1,000 MΩ min. at 500 VDC. It also has a dielectric strength of 2,000 Vrms between terminals and 2,500 Vrms between terminals and frame. The electrical life is rated for 10,000 cycles at full load.

641NH/2 Quick Information

Product Type: Toggle Switch
Series: 600H-600NH
Canonical Name: APEM Inc. 641NH/2 DPST Toggle Switch
Subcategory: Toggle Switch

641NH/2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

641NH/2 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

641NH/2 Features

  • DPST circuit configuration for switching.
  • Rated for 15A at 250VAC.
  • Panel mount with M12 bushing.
  • Quick connect termination style.
  • Operates from -20°C to 55°C.

641NH/2 Applications

  • Suitable for high amperage switching.
  • Ideal for panel-mounted controls.
  • Used in industrial equipment.
  • Reliable for general purpose switching.

641NH/2 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current and voltage rating of the 641NH/2 toggle switch?

The 641NH/2 toggle switch is rated for 15A at 250VAC.

What is the operating temperature range for this toggle switch?

The operating temperature range for the 641NH/2 is -20°C to 55°C.

How is the 641NH/2 toggle switch mounted?

The 641NH/2 toggle switch is designed for panel mounting.

What type of termination does the 641NH/2 switch use?

The 641NH/2 switch uses quick connect termination, measuring 0.250" (6.3mm).

What is the circuit configuration of the 641NH/2 toggle switch?

The 641NH/2 toggle switch has a DPST (Double Pole Single Throw) circuit configuration.

What is the electrical life expectancy of the 641NH/2 switch?

The electrical life expectancy of the 641NH/2 switch is 10,000 cycles at full load.
