| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Bushing Thread | |
| Circuit | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Switch Function | |
| Termination Style | |
| Torque | |
| Voltage Rating |

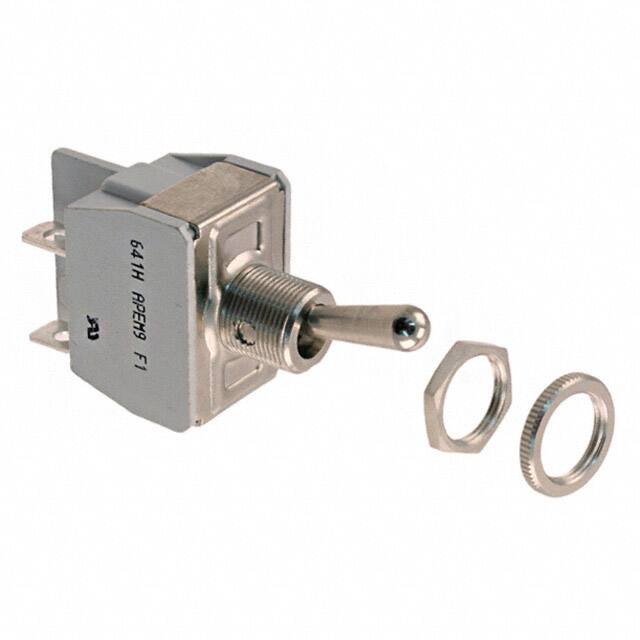

The APEM Inc. 641H/2 is a Double Pole Single Throw (DPST) toggle switch suitable for panel mount applications. It features a robust design with a 15A current rating at 250V AC and a 1/2 HP rating.
This switch operates within a temperature range of -20°C to 55°C. The termination style is quick connect, with a standard 0.250" (6.3mm) size. The panel cutout required is circular with a 12.20mm diameter, and it features an M12 x 0.75 bushing thread for secure mounting.
Key electrical specifications include an initial contact resistance of 10 mΩ max., insulation resistance of 1,000 MΩ min. at 500 VDC, and a dielectric strength of 2,000 Vrms between terminals. The electrical life is rated for 10,000 cycles at full load.
Distinctive features of the 600H-600NH series, to which this switch belongs, include a robust mechanism, high current/voltage ratings, and UL, CSA, and NF-VDE approvals.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switch has a rating of 15A at 250V AC and 1/2 HP.
The operating temperature range is -20°C to 55°C.
It uses a Quick Connect termination style, specifically 0.250" (6.3mm).
The electrical life is rated for 10,000 cycles at full load.
