| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Material | |
| Actuator Type | |
| Approved Ratings (Nominal @ CSA 22-2) | |
| Approved Ratings (Nominal @ NF-VDE EN 61058-1) | |
| Approved Ratings (Nominal @ UL 1054) | |
| Bushing Material | |
| Bushing Thread | |
| Case Material | |
| Circuit | |
| Contact Material | |
| Current Rating (Amps) | |
| Dielectric Strength (Minimum @ 50 Hz, between terminals and frame) | |
| Dielectric Strength (Minimum @ 50 Hz, between terminals) | |
| Electrical Life (Nominal @ Full Load) | |
| Electrical Life (Nominal @ ON - OFF) | |
| Electrical Life (Nominal @ ON OFF ON) | |
| Electrical Life (Nominal @ Other) | |
| Illumination | |
| Initial Contact Resistance | |
| Insulation Resistance | |
| Max Current Voltage Rating Resistive Load (Nominal @ ON - OFF) | |
| Max Current Voltage Rating Resistive Load (Nominal @ ON - ON) | |
| Max Current Voltage Rating Resistive Load (Nominal @ ON OFF ON) | |
| Max Current Voltage Rating Resistive Load (Nominal @ Other) | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Peak Current | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Torque | |
| Voltage Rating |

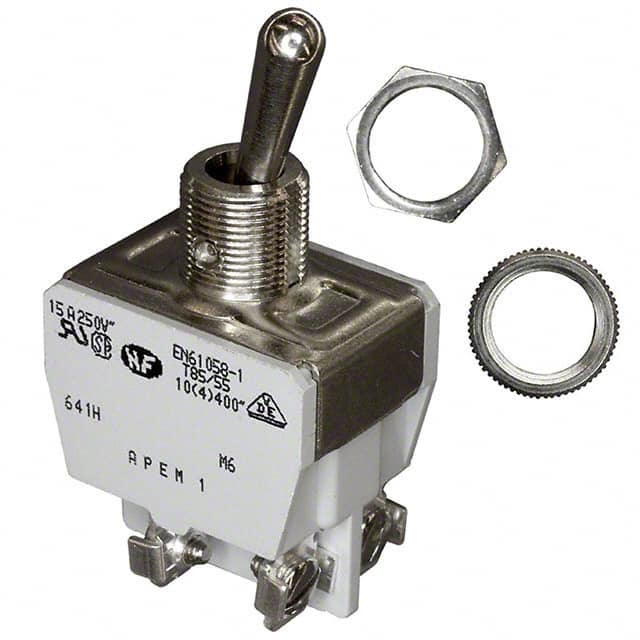

This APEM Inc. 641H toggle switch is a Double Pole Single Throw (DPST) device rated for 15A at 250V AC. It is designed for panel mounting with a M12 x 0.75 threaded bushing and a panel cutout diameter of 12.20mm. The switch features screw terminals for secure connections and a standard round, non-illuminated actuator.
The operating temperature range for this switch is -20°C to 55°C. The construction includes a polyester UL94-V0 case, brass nickel-plated actuator, and silver/nickel alloy contacts. The maximum torque applied to the nut is 1.50 Nm, and the maximum panel thickness it can accommodate is 4.5 mm.
Key electrical specifications include a peak current rating of 30A max. during 1/2 sine at 250 VAC, an initial contact resistance of 10 mΩ max., and an insulation resistance of 1,000 MΩ min. at 500 VDC. The dielectric strength is 2,000 Vrms between terminals and 2,500 Vrms between terminals and frame. The electrical life is rated for 10,000 cycles at full load.
This series is approved by UL, CSA, and NF-VDE (EN 61058-1). Distinctive features include a robust mechanism, high current/voltage rating, and the option of an insulated or metal lever.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 250 V.
The operating temperature range is -20°C to 55°C.
The current rating is 15A AC.
It has a DPST circuit.
It is designed for panel mounting.
It features screw terminals and a standard round actuator.
The electrical life is rated for 10,000 cycles at full load.
