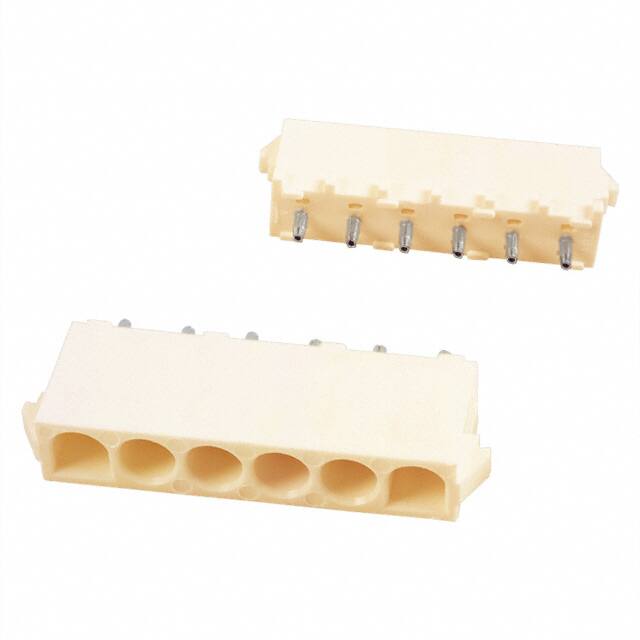

641832-1 TE Connectivity 641832-1 is a 6 position single row shrouded header with 6.35mm pitch, through hole solder termination, rated 12A and 600VAC.
Mfr Part #:

641832-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 641832-1 is a 6 position single row shrouded header with 6.35mm pitch, through hole solder termination, rated 12A and 600VAC.
✓ Total Stock: 2,000 pcs
$ Price Range: $3.04 - $4.95

641832-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

641832-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

641832-1 Description

Short technical summary and product information.

The TE Connectivity 641832-1 is a 6 position single row header designed for board to cable/wire applications. This shrouded 4-wall header features male pin contacts made of phosphor bronze with a tin finish, housed in a white polyamide (nylon) insulator. The connector uses a locking ramp fastening type for secure mating.



Key electrical ratings include a current rating of 12A and a voltage rating of 600VAC. The operating temperature range is -40°C to 105°C. The connector has a flammability rating of UL94 V-2.



The header is mounted via through hole and terminated by solder. The contacts are circular in shape with a contact length of 3.94mm and insulation height of 13.97mm. All 6 positions are loaded in a single row configuration.

641832-1 Quick Information

Product Type: Header
Series: Universal MATE-N-LOK
Canonical Name: TE Connectivity 641832-1 6 Position Single Row Header
Subcategory: Board to Cable/Wire

641832-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

641832-1 Estimated Pricing

Qty Low High
1+ $4.95 $4.95
10+ $4.21 $4.21
100+ $3.58 $3.58
500+ $3.19 $3.19
1,000+ $3.04 $3.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

641832-1 Features

  • 6 position single row shrouded header.
  • 6.35mm pitch for power applications.
  • Rated 12A and 600VAC.
  • Phosphor bronze tin plated contacts.
  • Locking ramp for secure mating.

641832-1 Applications

  • Board to cable/wire power connections.
  • Industrial control and automation systems.
  • Power distribution in equipment.
  • General purpose wire-to-board interconnects.

641832-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions on the 641832-1?

The 641832-1 has 6 positions, all loaded, in a single row.

What is the pitch of this header?

The pitch is 6.35mm.

What is the current rating of this connector?

The current rating is 12A.

What is the voltage rating?

The voltage rating is 600VAC.

What is the mounting type?

The mounting type is through hole with solder termination.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.

What is the contact finish?

The contact finish is tin.
