| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,650 pcs
|
5650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

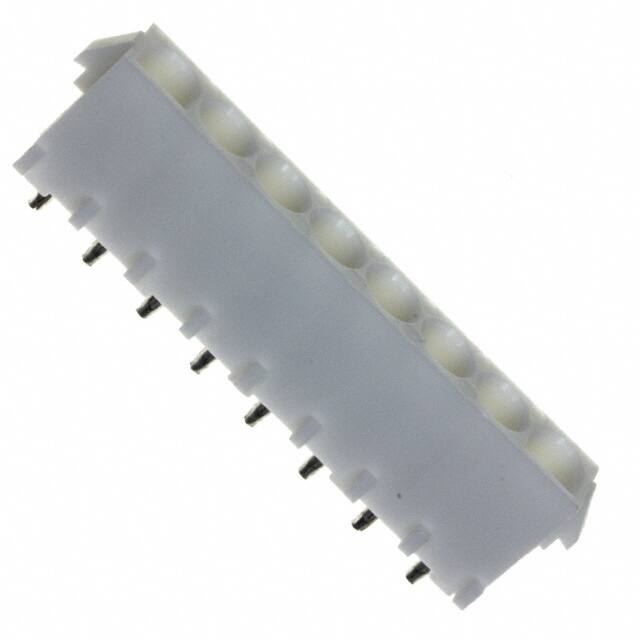

The TE Connectivity 641828-1 is a 8 position single row male pin header designed for board to cable/wire applications. It features a 6.35mm (0.250") pitch and a through hole solder termination for reliable PCB mounting.
The connector is fully shrouded with a 4-wall design and includes a locking ramp fastening system for secure mating. The contacts are made of phosphor bronze with a tin finish, and the housing is molded from polyamide (PA) nylon with a UL94 V-0 flammability rating.
Electrical ratings include a current rating of 12A and a voltage rating of 600VAC. The operating temperature range is -40°C to 105°C, making it suitable for a variety of industrial and commercial environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.22 | $2.22 |
| 10+ | $1.86 | $1.86 |
| 25+ | $1.82 | $1.82 |
| 100+ | $1.52 | $1.52 |
| 270+ | $1.44 | $1.44 |
| 540+ | $1.33 | $1.33 |
| 1,080+ | $1.23 | $1.23 |
| 2,565+ | $1.20 | $1.20 |
| 5,130+ | $1.14 | $1.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 641828-1 has 8 positions in a single row, all loaded.
The pitch is 6.35mm (0.250 inches).
The current rating is 12A.
The voltage rating is 600VAC.
It uses through hole mounting with solder termination.
The operating temperature range is -40°C to 105°C.
Yes, it is fully shrouded with a 4-wall design and has a locking ramp fastening type.
