| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
363 pcs
|
363 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

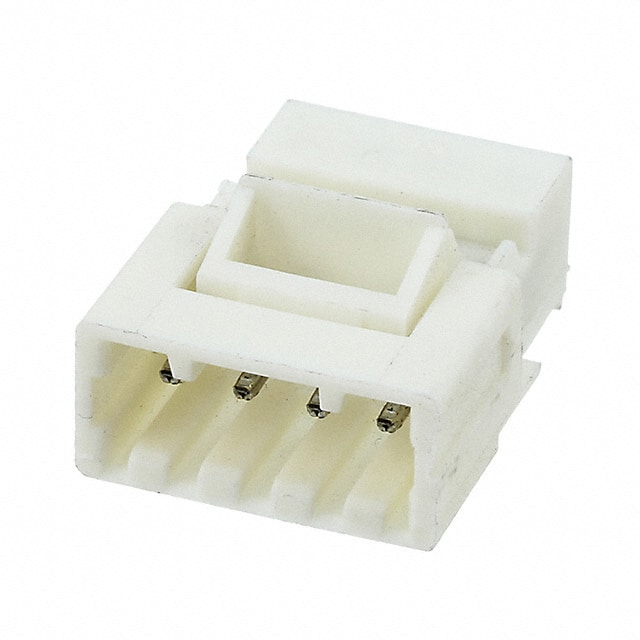

The TE Connectivity 641438-4 is a 4-position IDC (Insulation Displacement Connection) plug connector designed for use with 24 AWG discrete or ribbon cable. It features male pin contacts with a tin-lead finish (80µin thickness) and a 3.96mm (0.156 inch) pitch. The connector is configured for free hanging (in-line) right angle mounting, making it suitable for applications where space is constrained and a right-angle cable exit is required. The closed end design provides a secure termination point. This connector is part of TE Connectivity's rectangular connector family and is commonly used in wire-to-board interconnect applications. The white housing color aids in visual identification. The IDC termination method allows for quick and reliable connection without stripping insulation, reducing assembly time. The 3.96mm pitch is a standard spacing for many power and signal applications. The tin-lead contact finish offers good solderability and corrosion resistance, though lead-free alternatives may be preferred for new designs. Note that compliance with RoHS and REACH is unverified; please consult the manufacturer for current compliance status.
4 positions.
3.96mm (0.156 inches).
Free hanging (in-line), right angle.
Male pin.
IDC (Insulation Displacement Connection).
24 AWG.
Closed end design.
