| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

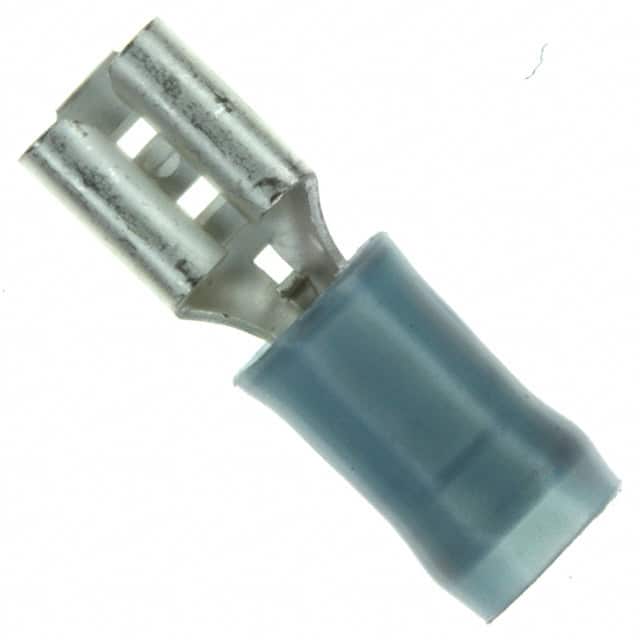

The TE Connectivity 640919-2 is a standard female quick disconnect receptacle designed for reliable wire-to-tab connections. It accommodates 14-16 AWG wire and mates with 0.187" (4.75mm) wide tabs of 0.020" (0.51mm) thickness and 0.250" (6.35mm) length.
The contact is made of tin-plated brass, providing good conductivity and corrosion resistance. The non-mating end is insulated with blue material, offering protection against accidental contact. The overall length is 20.32mm (0.800").
Termination is by crimp, ensuring a secure mechanical and electrical connection. The connector is free hanging (in-line) and does not require a panel or PCB mount. It is suitable for a wide range of applications including automotive, appliance, and industrial wiring.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.69 | $0.69 |
| 10+ | $0.58 | $0.58 |
| 25+ | $0.55 | $0.55 |
| 50+ | $0.52 | $0.52 |
| 100+ | $0.50 | $0.50 |
| 250+ | $0.46 | $0.46 |
| 500+ | $0.44 | $0.44 |
| 1,000+ | $0.42 | $0.42 |
| 4,000+ | $0.38 | $0.38 |
| 8,000+ | $0.36 | $0.36 |
| 12,000+ | $0.35 | $0.35 |
| 20,000+ | $0.34 | $0.34 |
| 28,000+ | $0.33 | $0.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The tab width is 0.187" (4.75mm).
It accepts 14-16 AWG wire.
Crimp termination.
Yes, it has non-mating end insulation.
The overall length is 20.32mm (0.800").
Brass contact with tin plating.
Free hanging (in-line) mounting.
