| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,500 pcs
|
9500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrel Color | |
| Barrel Type | |
| Color | |
| Compatible Insulation Diameter Range | |
| Contact Base Material | |
| Contact Finish | |
| Contact Material | |
| Crimp Type | |
| Gender | |
| Halogen Free | |
| Insulation | |
| Insulation Material | |
| Length | |
| Mating Retention Type | |
| Mating Tab Thickness | |
| Mating Tab Width | |
| Mounting Type | |
| Operating Temperature Range | |
| Packaging Method | |
| Packaging Quantity | |
| Product Length | |
| Quick Disconnect Terminal Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Material Thickness | |
| Terminal Orientation | |
| Terminal Plating Material | |
| Terminal Type | |
| Termination | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Insulation Support | |
| Wire size |

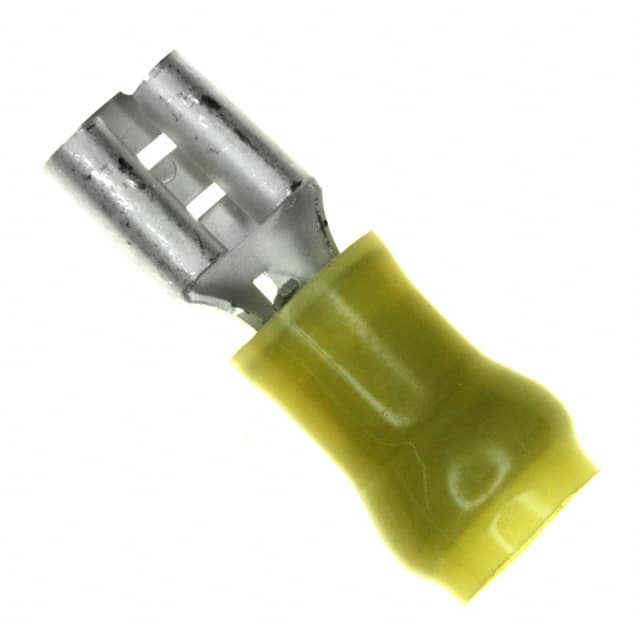

The TE Connectivity 640907-1 is a PIDG FASTON receptacle quick disconnect terminal designed for 10-12 AWG wire (5180 – 13100 CMA). It features a 6.35 mm [.25 in] mating tab width and 0.81 mm [.032 in] tab thickness, with a straight orientation. The terminal is made of tin-plated brass with a closed compression crimp barrel and a yellow nylon insulation support.
This terminal is rated for 300 V and operates over a temperature range of 105 °C. It includes a dimple mating retention feature and is supplied as loose piece in quantities of 500. The part is EU RoHS compliant, REACH compliant (does not contain SVHC), and is low halogen (BFR/CFR/PVC free).
Designed for free hanging (in-line) mounting, the 640907-1 is suitable for power and signal connections in a variety of industrial and commercial applications requiring reliable quick disconnect terminations.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
| 10+ | $0.84 | $0.84 |
| 25+ | $0.77 | $0.77 |
| 100+ | $0.74 | $0.74 |
| 250+ | $0.69 | $0.69 |
| 500+ | $0.62 | $0.62 |
| 1,000+ | $0.56 | $0.56 |
| 2,500+ | $0.53 | $0.53 |
| 5,000+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts 10-12 AWG wire (5180 – 13100 CMA).
The voltage rating is 300 V.
The mating tab width is 6.35 mm [.25 in] and tab thickness is 0.81 mm [.032 in].
Yes, it is EU RoHS Directive 2011/65/EU compliant.
The operating temperature range is 105 °C [221 °F].
It is supplied in loose piece packaging with a quantity of 500.
