| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
695 pcs
|
695 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

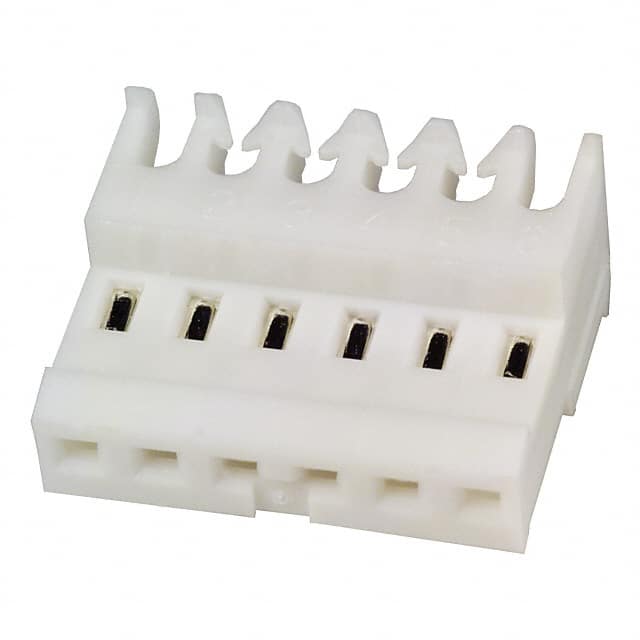

The TE Connectivity 640621-6 is a rectangular connector receptacle designed for 6 positions in a single row. It uses female socket contacts and has a pitch of 2.54mm (0.100 inches). The connector is terminated via IDC (Insulation Displacement Connection) and accommodates 24 AWG wire, suitable for both discrete and ribbon cable. The contact finish is tin-lead with a thickness of 80µin (2.03µm).
This receptacle features a free hanging (in-line) mounting with a right-angle orientation, making it suitable for cable assemblies where space is constrained. A locking ramp fastening type ensures secure mating. The connector is white and includes a feed-through feature, allowing for pass-through wiring applications.
According to existing data, the part is listed as RoHS3 compliant, has MSL 1 (unlimited), and is REACH unaffected, though these compliance statements are unverified. The connector is intended for use in internal wiring and cable-to-board connections.
It has 6 positions in a single row.
The pitch is 2.54mm (0.100 inches).
It is free hanging (in-line) with right-angle orientation.
It supports 24 AWG wire.
It uses IDC (Insulation Displacement Connection) termination.
Female socket contacts.
Tin-lead with 80µin (2.03µm) thickness.
