| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accepts Wire Insulation Diameter Range | |
| CSA Rating | |
| Cable Exit Angle | |
| Cable Termination | |
| Circuit Application | |
| Color | |
| Connector Mounting Type | |
| Connector System | |
| Connector Type | |
| Contact Base Material | |
| Contact Current Rating (Max) | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Mating Area Plating Material Finish | |
| Contact Termination Area Plating Thickness | |
| Contact Type | |
| Contact Underplating Material | |
| Fastening Type | |
| Features | |
| Height | |
| Housing Material | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Operating Voltage | |
| Pitch | |
| Sealable | |
| Strain Relief | |
| Tape & Reel | |
| UL Flammability Rating | |
| Underplate Material Thickness | |
| Wire Gauge | |
| Wire Type | |
| Wire size |

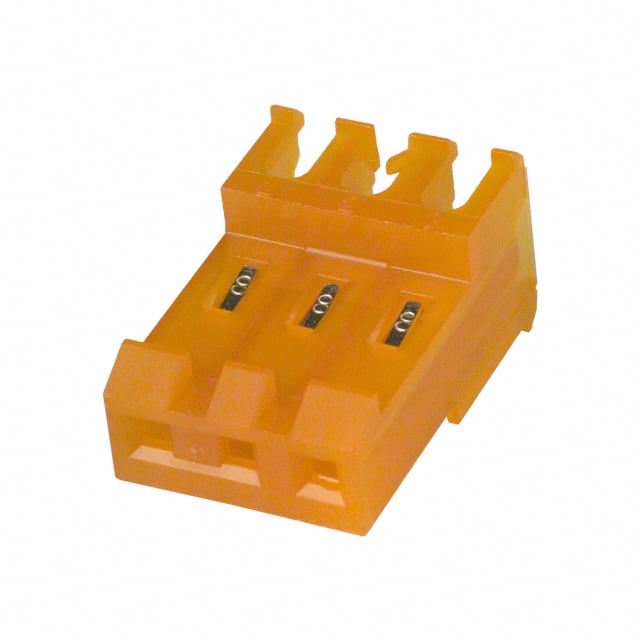

The TE Connectivity 640599-3 is a 3-position rectangular power connector assembly from the MTA 156 series. It is a receptacle connector designed for wire-to-board applications with a free hanging (in-line) mounting style. The connector features a 3.96mm (0.156 inch) centerline pitch and accepts 18 AWG discrete or ribbon cable via insulation displacement crimp (IDC) termination.
Electrical ratings include a maximum contact current of 7A and an operating voltage of 600VAC. The housing is made of orange nylon with a UL 94V-2 flammability rating. Contacts are female sockets with a copper alloy base, nickel underplating, and a matte tin-lead mating area plating (2.03µm thickness). The connector includes a locking ramp fastening type and a strain relief feature. It is not sealable and has a cable exit angle of 90 degrees.
This connector is suitable for power circuit applications and is CSA certified. The operating temperature range is -55°C to 105°C.
The pitch (centerline) is 3.96mm (0.156 inches).
The maximum contact current rating is 7A.
The operating voltage is 600VAC.
Free hanging (in-line) mounting.
It accepts 18 AWG wire.
-55°C to 105°C.
The housing is nylon with a UL 94V-2 flammability rating.
