| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
420 pcs
|
420 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

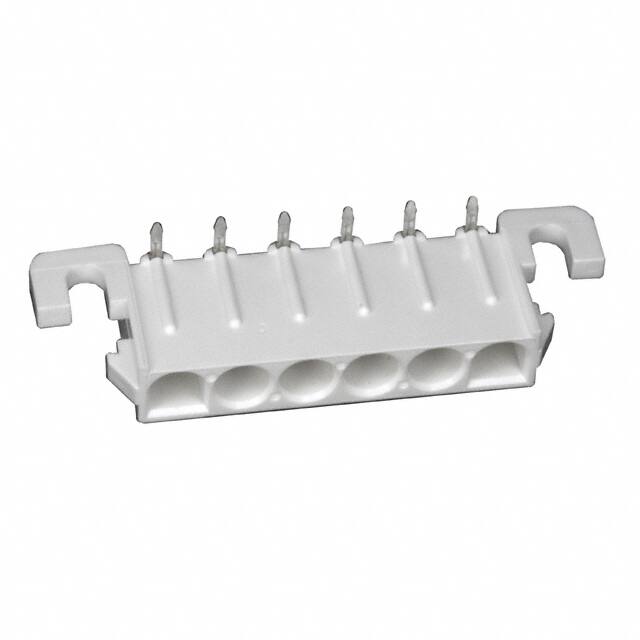

The TE Connectivity 640583-1 is a 6 position single row header with male pin contacts arranged on a 6.35mm pitch. This connector features a right angle through hole mounting style with solder termination, making it suitable for board to cable or wire applications. The header is fully shrouded with a 4 wall design and includes a locking ramp fastening system for secure mating.
Electrical ratings include a current rating of 12A and a voltage rating of 600VAC. The operating temperature range is -40°C to 105°C. Contacts are made of phosphor bronze with a tin finish, and the insulator is white polyamide (nylon) with a UL94 V-0 flammability rating. A mounting flange is included for additional mechanical stability.
This component is RoHS3 compliant and has an MSL rating of 1 (unlimited). It is designed for use in power distribution and wire to board interconnect applications where a robust, polarized connection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.48 | $3.48 |
| 10+ | $3.07 | $3.07 |
| 25+ | $3.03 | $3.03 |
| 100+ | $2.62 | $2.62 |
| 560+ | $2.37 | $2.37 |
| 1,120+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions, all loaded, in a single row.
6.35mm.
12A.
600VAC.
Through hole, right angle.
-40°C to 105°C.
Tin.
