| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19,027 pcs
|
19027 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

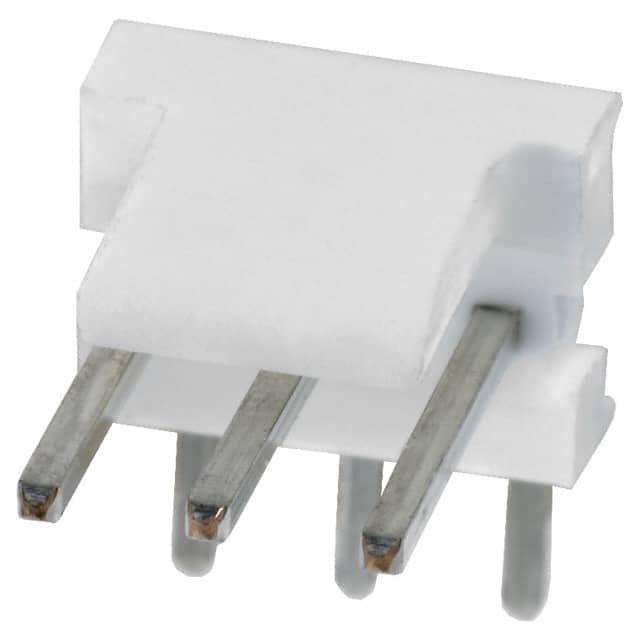

The TE Connectivity 640457-3 is a 3 position single row right angle shrouded header designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and through hole right angle mounting with solder termination. The header is shrouded with one wall and includes a friction lock fastening type for secure mating. Contacts are male pin type with square shape, made of copper alloy with tin finish. The mating contact length is 7.49mm (0.295") and the insulation height is 5.72mm (0.225"). The insulator is natural colored thermoplastic with a UL94 V-0 flammability rating. The operating temperature range is -55°C to 105°C. Voltage rating is 250VAC. Current rating varies by wire gauge. All 3 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.24 | $0.24 |
| 10+ | $0.22 | $0.22 |
| 25+ | $0.20 | $0.20 |
| 100+ | $0.15 | $0.15 |
| 250+ | $0.14 | $0.14 |
| 1,000+ | $0.13 | $0.13 |
| 2,500+ | $0.12 | $0.12 |
| 5,000+ | $0.11 | $0.11 |
| 10,000+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions, single row, all loaded.
2.54mm (0.100").
250VAC.
Through hole, right angle.
-55°C to 105°C.
Tin.
Yes, shrouded with one wall and friction lock.
