| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,530 pcs
|
11530 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | 4 | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

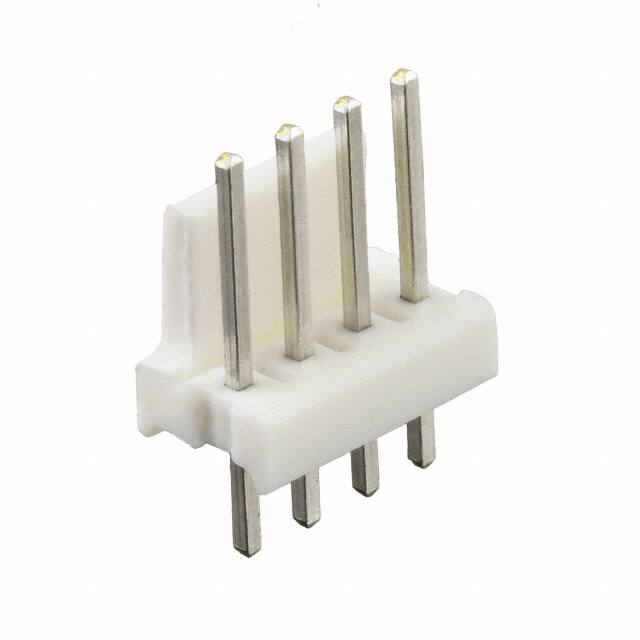

The TE Connectivity 640454-4 is a 4-position, single row header from the MTA 100 series. It features a 2.54mm pitch and is designed for board-to-cable/wire connections. The header is shrouded with one wall, providing polarization and protection during mating.
Key specifications include tin-plated copper alloy contacts with an overall contact length of 13.59mm and a contact length of 7.49mm. The insulation is made of natural thermoplastic with a height of 7.75mm and a flammability rating of UL94 V-0. The operating temperature range is -55°C to 105°C.
This through-hole header is terminated via solder and is rated for 250VAC. The current rating varies by wire gauge. It is suitable for a variety of applications requiring reliable wire-to-board interconnects.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.27 | $0.27 |
| 10+ | $0.23 | $0.23 |
| 25+ | $0.21 | $0.21 |
| 100+ | $0.17 | $0.17 |
| 250+ | $0.15 | $0.15 |
| 1,000+ | $0.14 | $0.14 |
| 2,500+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
2.54mm.
250VAC.
Through hole.
-55°C to 105°C.
Tin.
UL94 V-0.
