| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| ELV | |
| Fastening Type | |
| Halogen Content | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Solder Process Capability | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

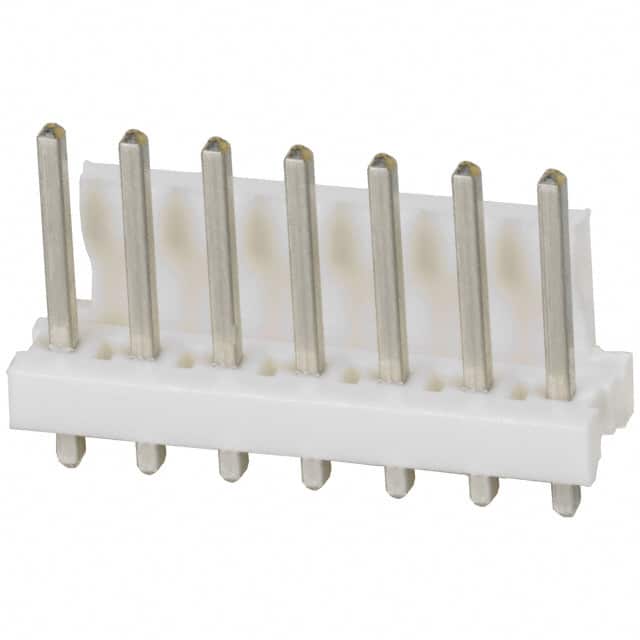

The TE Connectivity 640445-7 is a 7-position, single-row header with male pin contacts designed for board-to-cable/wire interconnect applications. It features a 3.96mm pitch and is fully shrouded with a single wall for enhanced mating alignment and protection. The friction lock fastening mechanism provides secure retention with mating connectors.
The header is through-hole mounted and terminated by solder, making it compatible with standard wave soldering processes up to 265°C. The contacts are made of copper alloy with a tin finish and have a square cross-section. The insulator is molded from glass-filled thermoplastic rated UL94 V-0 for flammability resistance and comes in a natural color.
Rated for 600VAC and operating over -55°C to 105°C, this connector is suitable for power and signal applications within those limits. The current rating varies by wire gauge, so proper derating for the chosen wire size must be considered.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.61 | $0.61 |
| 10+ | $0.54 | $0.54 |
| 25+ | $0.50 | $0.50 |
| 100+ | $0.43 | $0.43 |
| 250+ | $0.38 | $0.38 |
| 1,000+ | $0.36 | $0.36 |
| 3,000+ | $0.36 | $0.36 |
| 5,000+ | $0.34 | $0.34 |
| 10,000+ | $0.33 | $0.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.96mm.
It has 7 positions, all loaded.
The voltage rating is 600VAC.
It uses through hole mounting with solder termination.
Yes, it is EU RoHS compliant (Directive 2011/65/EU incl. 2015/863/EU) as verified by the manufacturer's statement of compliance.
The operating temperature range is -55°C to 105°C.
