| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,844 pcs
|
30844 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| ELV | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Solder Process Capability | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

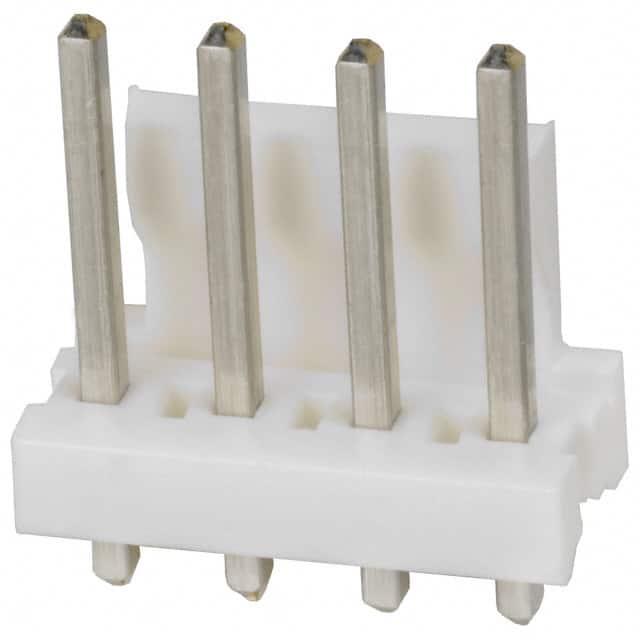

TE Connectivity 640445-4 is a rectangular connector header designed for board-to-cable/wire applications. It has 4 positions in a single row with a 3.96mm pitch.
Mechanical and electrical specifications include through-hole mounting with solder termination, a shrouded 1-wall design with friction lock for secure mating, square copper alloy contacts with tin finish, and natural thermoplastic glass-filled insulation rated UL94 V-0. The voltage rating is 600VAC, current rating varies by wire gauge, and operating temperature ranges from -55°C to 105°C.
Compliance includes RoHS, REACH, ELV, and China RoHS. The part is not low halogen and is wave solder capable to 265°C.
This header is suitable for wire-to-board connections in various electronic devices requiring a reliable locking mechanism.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.33 | $0.33 |
| 10+ | $0.28 | $0.28 |
| 25+ | $0.23 | $0.23 |
| 100+ | $0.21 | $0.21 |
| 250+ | $0.19 | $0.19 |
| 1,000+ | $0.17 | $0.17 |
| 2,000+ | $0.16 | $0.16 |
| 6,000+ | $0.16 | $0.16 |
| 10,000+ | $0.15 | $0.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions in a single row.
3.96mm (0.156 inches).
600VAC.
Through hole with solder termination.
-55°C to 105°C.
Yes, it is RoHS compliant.
Tin.
