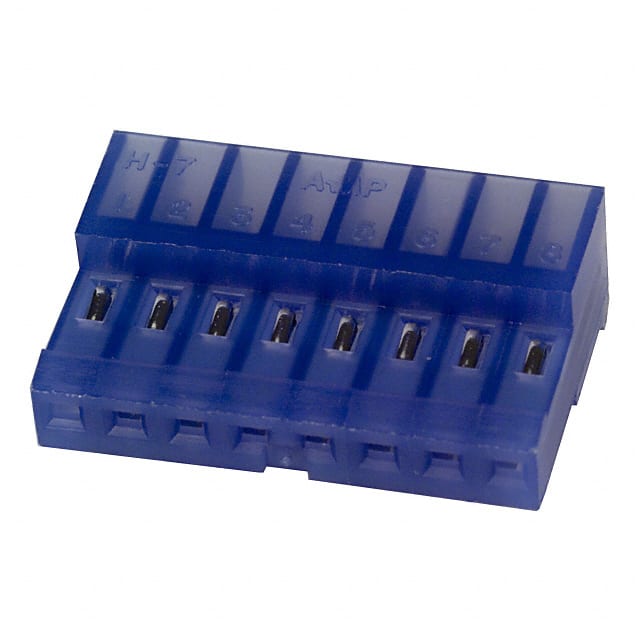

640442-8 TE Connectivity MTA-100 8-position receptacle connector with IDC termination for 26 AWG wire. Rated 5A at 250VAC with tin-lead contacts.
Mfr Part #:

640442-8

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity MTA-100 8-position receptacle connector with IDC termination for 26 AWG wire. Rated 5A at 250VAC with tin-lead contacts.
✓ Total Stock: 50 pcs

640442-8 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
DYNACO PRODUCTS ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

640442-8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector System
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Fastening Type
Features
Height
Housing Material
Length
Mating Retention Type
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Operating Voltage
Pitch
SVHC Present
Tape & Reel
UL Flammability Rating
Width
Wire Gauge
Wire Type
View Similar Products (0)

640442-8 Description

Short technical summary and product information.

The TE Connectivity 640442-8 is an 8-position receptacle connector from the MTA-100 series. It features a 2.54mm pitch and uses insulation displacement crimp (IDC) termination for 26 AWG stranded wire, supporting both discrete and ribbon cable. The housing is made of blue Nylon 6/6 with a UL 94V-2 flammability rating.



Electrical ratings include a maximum contact current of 5A and an operating voltage of 250VAC. The connector is designed for wire-to-board applications and includes a locking ramp for mating retention. Contacts are female sockets with tin-lead plating (80µin) over nickel underplating.



The connector is free-hanging (cable mount) with a right-angle orientation. It is not sealable and not shielded. Packaging is in boxes of 250 pieces. The part is CSA certified (LR7189) and UL recognized (E28476).

640442-8 Quick Information

Product Type: Rectangular Connector - Receptacle
Series: MTA-100
Canonical Name: TE Connectivity MTA-100 8-Position Receptacle Connector, IDC, 26 AWG, Tin-Lead
Subcategory: Free Hanging, Panel Mount

640442-8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

640442-8 Features

  • 8-position single-row IDC receptacle connector.
  • Rated 5A at 250VAC operating voltage.
  • Tin-lead plated female socket contacts.
  • Locking ramp for secure mating retention.
  • Blue Nylon 6/6 housing, UL 94V-2 rated.

640442-8 Applications

  • Wire-to-board signal connections in electronics.
  • Internal wiring of consumer and industrial equipment.
  • Discrete or ribbon cable harness assemblies.
  • Applications requiring 2.54mm pitch connectors.

640442-8 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 640442-8 connector have?

The connector has 8 positions in a single row.

What is the pitch of the TE Connectivity 640442-8?

The pitch is 2.54mm (0.100 inches).

What is the current rating of the 640442-8?

The maximum contact current rating is 5A.

What is the voltage rating for the 640442-8?

The operating voltage is 250 VAC.

What mounting type does the 640442-8 use?

It is a free hanging (in-line) right-angle cable mount connector.

What wire gauge is compatible with the 640442-8?

It accepts 26 AWG wire with a cross-section of 0.12 to 0.15 mm².

What is the operating temperature range of the 640442-8?

The operating temperature range is -55°C to 105°C.
