| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,470 pcs
|
1470 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

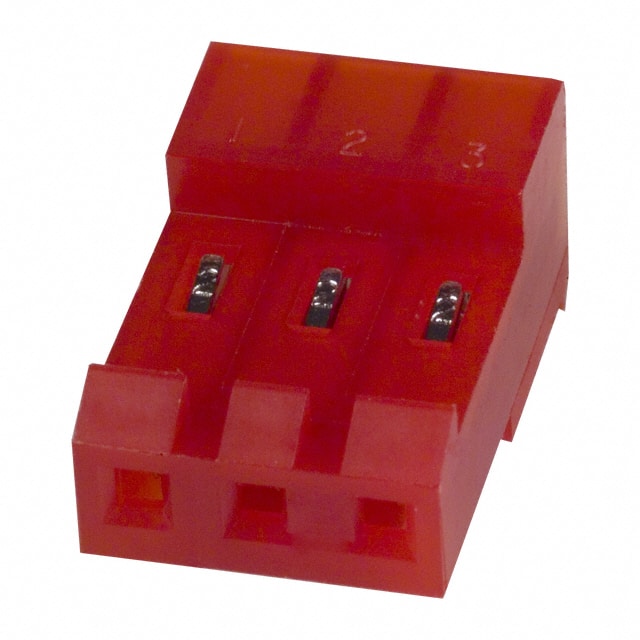

The TE Connectivity 640428-3 is a 3-position IDC receptacle designed for discrete or ribbon cable termination. It features a 3.96mm (0.156") pitch and accepts 22 AWG wire. The contact finish is Tin-Lead with a thickness of 80µin (2.03µm).
This connector uses insulation displacement connection (IDC) for quick and reliable wire termination without stripping. The free hanging (in-line) mounting style allows flexible placement in cable assemblies. A locking ramp fastening mechanism ensures secure mating.
The closed end design provides a positive stop for wires, and the red housing aids in visual identification. It is a single-row, 1-row connector suitable for various wire-to-board or wire-to-wire applications.
| Qty | Low | High |
|---|---|---|
| 2,000+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
3.96mm (0.156").
Free Hanging (In-Line).
22 AWG.
Tin-Lead with 80µin (2.03µm) thickness.
IDC (Insulation Displacement Connection).
Locking Ramp.
