| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
61 pcs
|
61 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

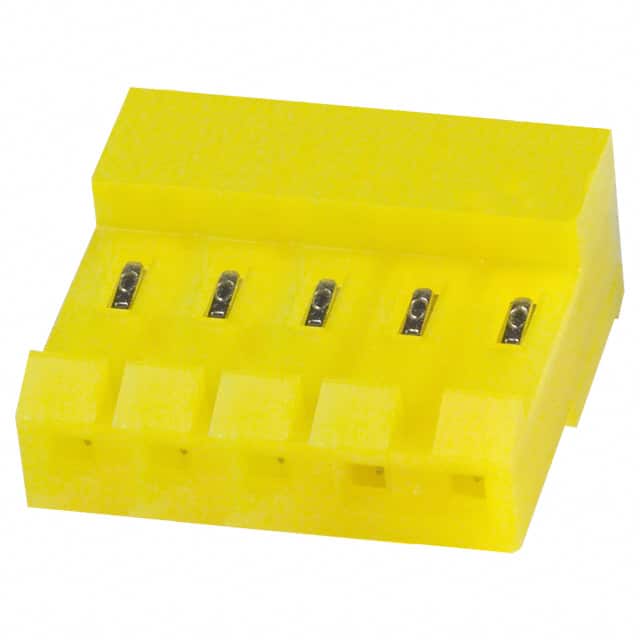

The TE Connectivity 640427-5 is a 5-position IDC (Insulation Displacement Connector) receptacle from the MTA-156 series. It features a 3.96mm (0.156") pitch and accepts 20 AWG wire, supporting both discrete and ribbon cable types.
This connector uses a free hanging (in-line) mounting style with a locking ramp fastening type for secure mating. The closed end design and yellow housing make it easily identifiable. Contacts are female sockets with a tin-lead finish (80.0µin / 2.03µm thickness).
Cable termination is via IDC, allowing fast and reliable wire termination without stripping. The connector is designed for applications requiring a compact and durable wire-to-board or wire-to-wire connection in a single-row configuration.
This connector has 5 positions.
The pitch is 3.96mm (0.156 inches).
It accepts 20 AWG wire.
The mounting type is free hanging (in-line).
Termination is IDC (Insulation Displacement Connection).
The contact finish is tin-lead with a thickness of 2.03µm (80.0µin).
