| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
232 pcs
|
232 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Wire Gauge | |
| Wire Type |

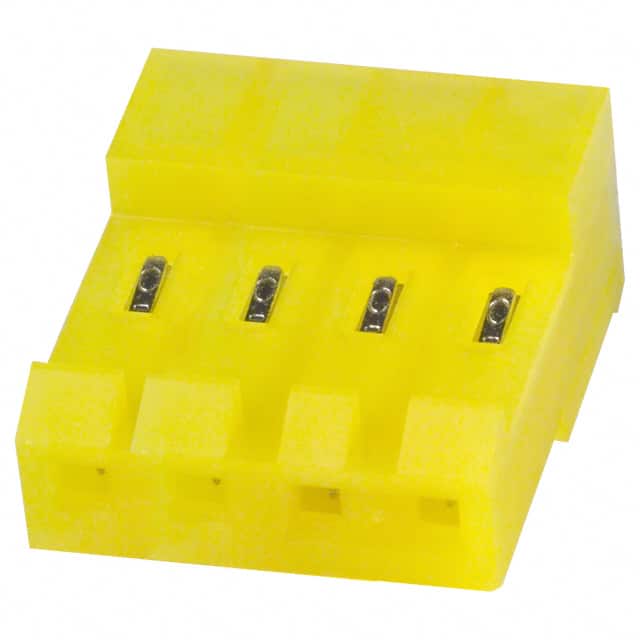

The TE Connectivity 640427-4 is a 4-position IDC (Insulation Displacement Connector) receptacle from the MTA-100 family. It is designed for 20 AWG discrete or ribbon cable and uses a free hanging (in-line) mounting style. The connector features a 3.96mm (0.156 inch) pitch and a single row of female socket contacts.
Contact plating is tin-lead with a thickness of 80 microinches (2.03 micrometers), providing reliable conductivity. A locking ramp fastening mechanism ensures secure mating with header connectors. The connector housing is yellow and features a closed end design, which helps protect contacts and provides a finished appearance.
This connector is suited for wire-to-board applications in a variety of electronic equipment where a compact, reliable IDC termination is needed. The 3.96mm pitch is common in power and signal connector applications.
The pitch is 3.96 mm (0.156 inches).
The connector has 4 positions in a single row.
It is designed for 20 AWG wire, suitable for discrete or ribbon cable.
Yes, it features a locking ramp fastening type.
The contacts are plated with tin-lead, 80 microinches (2.03 micrometers) thick.
