| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
483 pcs
|
483 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

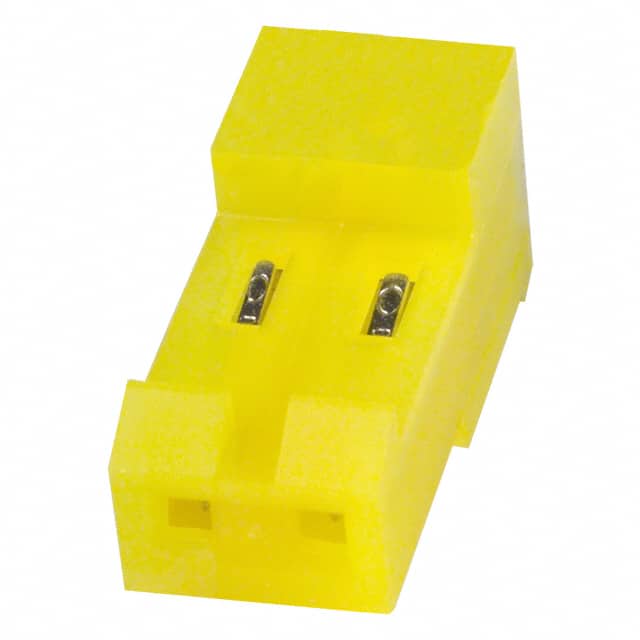

The TE Connectivity 640427-2 is a 2-position rectangular receptacle connector from the MTA-156 series. Designed for free hanging (in-line) mounting, this connector uses insulation displacement contact (IDC) termination to accept 20 AWG discrete or ribbon cable. It features a single row of female socket contacts with a tin-lead finish (80 microinches / 2.03 microns) and a 3.96mm (0.156 inch) pitch.
The connector is enclosed in a yellow housing with a closed end configuration and includes a locking ramp fastening type for secure mating. The contact material is not specified in available data. The housing color may vary due to a global standardization change implemented in March 2020, which does not affect product performance.
This connector is suitable for internal wire-to-board or wire-to-wire applications where a reliable, low-profile connection is needed. The IDC termination simplifies assembly by eliminating the need for wire stripping or crimping operations.
The 640427-2 is a receptacle (female) connector.
It has 2 positions in a single row.
The pitch is 3.96mm (0.156 inches).
It uses Insulation Displacement Contact (IDC) termination.
It is designed for 20 AWG wire, either discrete or ribbon cable.
The female socket contacts have a tin-lead finish with a thickness of 80 microinches (2.03 micrometers).
It supports free hanging (in-line) mounting.
