| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
125 pcs
|
125 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

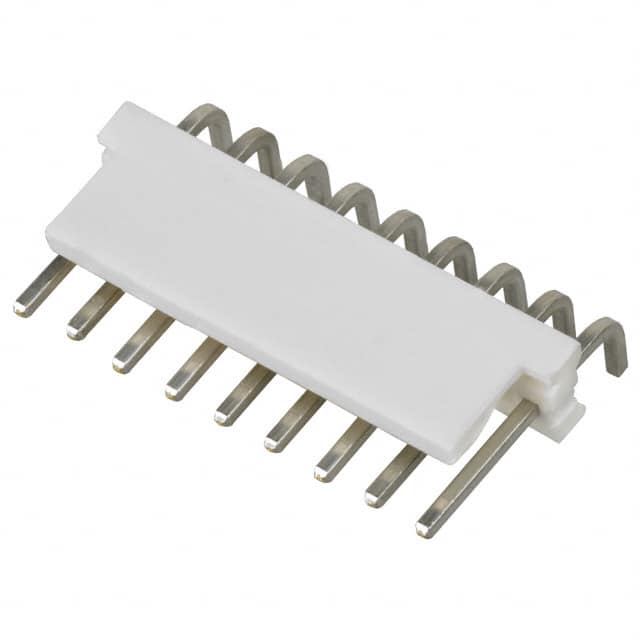

The TE Connectivity 640389-9 is a 9-position single row right angle shrouded header from the MTA156 series. It is designed for board-to-cable/wire applications and features a friction lock fastening system for secure mating. The header has a 3.96mm pitch and uses through hole solder termination.
The contacts are made of copper alloy with a matte tin plating on the mating area. The housing is natural-colored thermoplastic, glass filled, with a UL94 V-0 flammability rating. The operating temperature range is -55°C to 105°C.
This header is rated for 7A per contact and 600VAC. It is Always EU RoHS/ELV Compliant. The right angle orientation allows for low-profile connections parallel to the PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.33 | $1.33 |
| 10+ | $1.14 | $1.14 |
| 25+ | $0.91 | $0.91 |
| 100+ | $0.84 | $0.84 |
| 250+ | $0.81 | $0.81 |
| 500+ | $0.77 | $0.77 |
| 1,000+ | $0.63 | $0.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 640389-9 has 9 positions in a single row.
The pitch is 3.96mm.
The current rating is 7A per contact, varying by wire gauge.
The voltage rating is 600VAC.
The mounting type is through hole, right angle.
The operating temperature range is -55°C to 105°C.
Yes, it is Always EU RoHS/ELV Compliant as stated in the datasheet.
