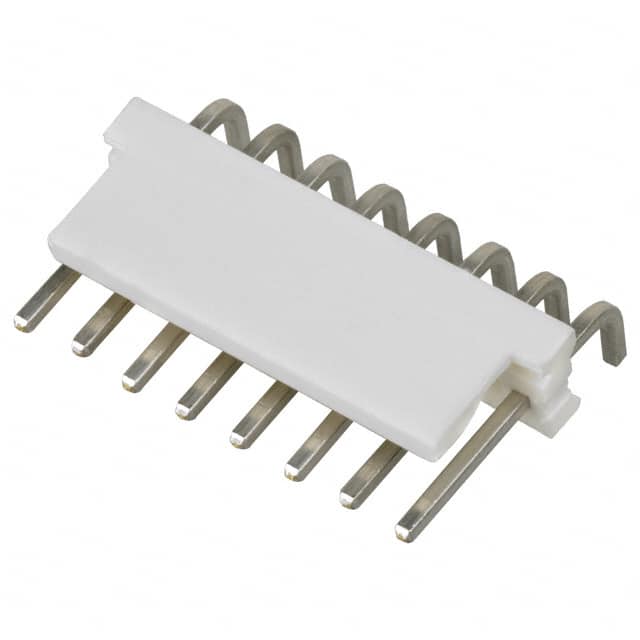

640389-8 8 position, single row, right angle header with 3.96mm pitch. Features tin-plated square pins and friction lock for secure mating.
Mfr Part #:

640389-8

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
8 position, single row, right angle header with 3.96mm pitch. Features tin-plated square pins and friction lock for secure mating.
✓ Total Stock: 50 pcs
$ Price Range: $0.47 - $0.91

640389-8 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

640389-8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

640389-8 Description

Short technical summary and product information.

The TE Connectivity 640389-8 is an 8-position, single-row, right-angle male pin header designed for board-to-wire connections. With a 3.96mm pitch and shrouded 1-wall design, it provides reliable power and signal interconnects. The header features a friction lock fastening system for secure mating and tin-plated copper alloy square pins for good conductivity.



Rated for 600VAC and a current capacity that varies by wire gauge, this header is suitable for applications requiring moderate to high voltage and current. It operates over a temperature range of -55°C to 105°C and uses a glass-filled thermoplastic insulator with UL94 V-0 flammability rating.



The right-angle through-hole mounting allows compact PCB layout, and the natural color insulation aids visual inspection. This connector is commonly used in industrial controls, appliances, lighting, and consumer electronics where a robust wire-to-board interface is needed.

640389-8 Quick Information

Product Type: Header
Canonical Name: 8 Position 3.96mm Pitch Right Angle Header
Subcategory: Male Pins

640389-8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

640389-8 Estimated Pricing

Qty Low High
1+ $0.91 $0.91
10+ $0.78 $0.78
100+ $0.66 $0.66
500+ $0.59 $0.59
1,500+ $0.54 $0.54
6,000+ $0.49 $0.49
10,500+ $0.47 $0.47

Estimated market price range - modelled values for guidance only, not live distributor offers.

640389-8 Features

  • 8 position single row header.
  • 3.96mm pitch for wire-to-board.
  • Right angle through hole mounting.
  • Friction lock for secure retention.
  • UL94 V-0 flame retardant insulation.

640389-8 Applications

  • Wire-to-board connections in appliances.
  • Power distribution in industrial controls.
  • Lighting and consumer electronics.
  • Automotive interior systems.

640389-8 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

8

What is the pitch of this connector?

3.96mm (0.156 inch)

What is the voltage rating?

600VAC

What is the mounting type?

Through Hole, Right Angle

What is the operating temperature range?

-55°C to 105°C

What is the contact finish?

Tin

What fastening mechanism is used?

Friction lock
