| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| EU ELV | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Solder Process Capability | |
| Style | |
| Termination | |
| Voltage Rating |

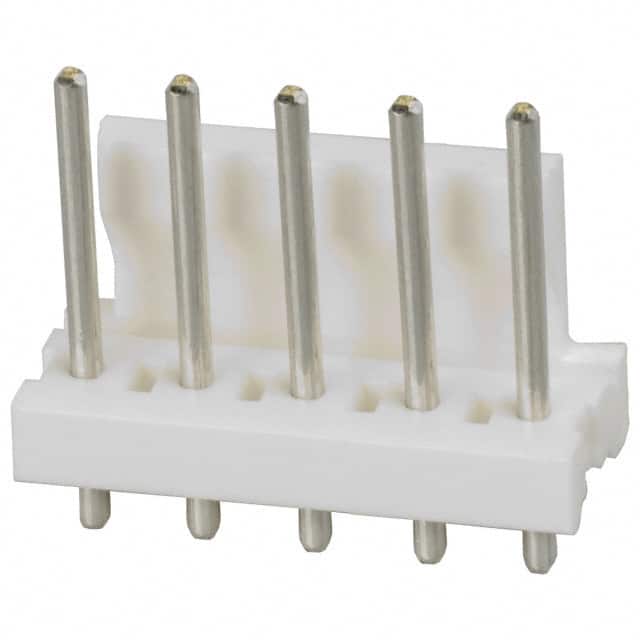

The TE Connectivity 640388-5 is a board-to-cable/wire rectangular connector header. It features 5 positions in a single row on a 3.96mm pitch, with male pin contacts made of copper alloy and finished in tin.
This header is shrouded with one wall and includes a friction lock fastening system for secure mating. It is designed for through hole mounting with solder termination. The insulation is natural colored thermoplastic, glass filled, rated UL94 V-0. Overall contact length is 0.650" (16.51mm), with an insulation height of 10.80mm.
Electrical rating is 600VAC. Operating temperature range is -55°C to 105°C. The part is EU RoHS and EU ELV compliant, and does not contain REACH SVHC. It is wave solder capable to 265°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.42 | $0.42 |
| 10+ | $0.36 | $0.36 |
| 25+ | $0.34 | $0.34 |
| 100+ | $0.29 | $0.29 |
| 250+ | $0.26 | $0.26 |
| 1,000+ | $0.20 | $0.20 |
| 2,000+ | $0.19 | $0.19 |
| 10,000+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.96mm (0.156 inches).
The voltage rating is 600VAC.
Through hole mounting with solder termination.
Yes, it features a friction lock fastening type.
-55°C to 105°C.
