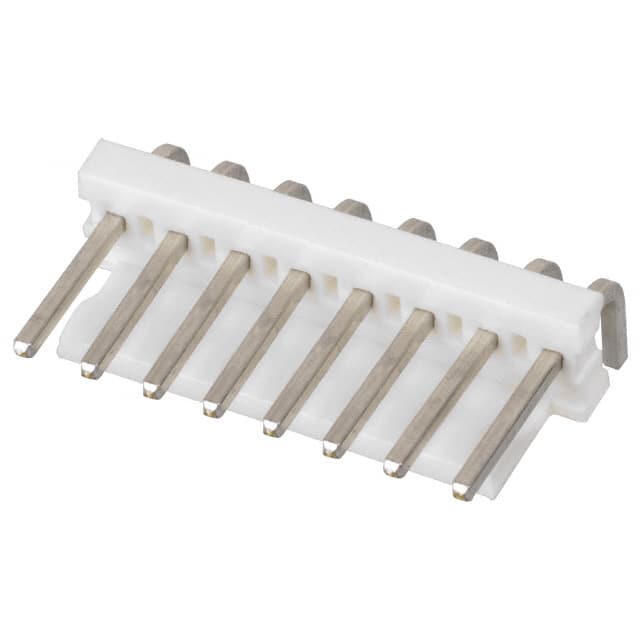

640387-8 TE Connectivity 640387-8 is a single-row, 8-position, right angle header with 3.96mm pitch. It features a friction lock, shrouded design, and tin-plated copper alloy contacts.
Mfr Part #:

640387-8

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 640387-8 is a single-row, 8-position, right angle header with 3.96mm pitch. It features a friction lock, shrouded design, and tin-plated copper alloy contacts.
✓ Total Stock: 507 pcs
$ Price Range: $0.65 - $1.25

640387-8 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
507 pcs
On Request
507 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

640387-8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

640387-8 Description

Short technical summary and product information.

The TE Connectivity 640387-8 is a single-row, 8-position header designed for board-to-cable/wire applications. It features a right-angle orientation with through-hole solder termination, simplifying assembly in space-constrained designs. The connector uses a 3.96mm pitch and has a friction lock fastening type for secure mating. The shrouded design (1 wall) provides partial protection to the male pins. Contacts are made of copper alloy with a tin finish, and the insulator is natural-colored thermoplastic, glass filled, rated UL94 V-0. The header is rated for 600VAC, with current capacity varying by wire gauge. Operating temperature range is -55°C to 105°C. This component is RoHS3 compliant and REACH unaffected, though these compliance claims are unverified.

640387-8 Quick Information

Product Type: Header, Male Pins
Canonical Name: TE Connectivity 640387-8 Header, Male Pins, Right Angle, 8 Positions, 3.96mm Pitch
Subcategory: Male Pins

640387-8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

640387-8 Estimated Pricing

Qty Low High
1+ $1.25 $1.25
10+ $1.06 $1.06
100+ $0.90 $0.90
500+ $0.80 $0.80
1,000+ $0.77 $0.77
5,000+ $0.68 $0.68
10,000+ $0.65 $0.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

640387-8 Features

  • Single row right angle header.
  • 8 positions with 3.96mm pitch.
  • Friction lock for secure mating.
  • Shrouded design with 1 wall.
  • Tin-plated copper alloy contacts.

640387-8 Applications

  • Board-to-cable/wire interconnections.
  • Requires friction lock retention.
  • Suitable for 600VAC circuits.
  • Use with mating connectors with 3.96mm pitch.

640387-8 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 640387-8 have?

It has 8 positions.

What is the pitch of this header?

The pitch is 3.96mm (0.156 inches).

What is the current rating of the 640387-8?

The current rating varies by wire gauge; a fixed value is not specified.

What is the voltage rating?

The voltage rating is 600VAC.

What is the mounting type?

Mounting type is through hole, right angle.

What is the operating temperature range?

Operating temperature range is -55°C to 105°C.

Does this header have a friction lock?

Yes, it features a friction lock fastening type.
