| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,050 pcs
|
14050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

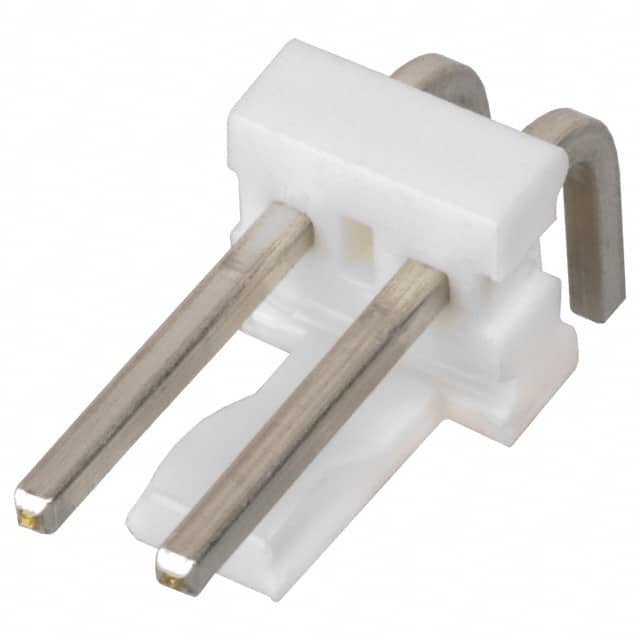

The TE Connectivity 640387-2 is a 2-position, single-row right-angle header designed for board-to-cable/wire applications. It features a 3.96mm (0.156") pitch, making it suitable for power and signal connections in various electronic assemblies. The header is shrouded with a single wall and includes a friction lock for secure mating.
Contacts are made of copper alloy with a tin finish, providing reliable conductivity and solderability. The insulation is thermoplastic, glass filled, rated UL94 V-0, and the housing is natural in color. It is rated for 600VAC and operates over a temperature range of -55°C to 105°C. Current rating depends on wire gauge.
This header is mounted through-hole with right-angle orientation and terminated by soldering. It is suitable for applications requiring a compact, robust interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.53 | $0.53 |
| 10+ | $0.45 | $0.45 |
| 25+ | $0.44 | $0.44 |
| 100+ | $0.35 | $0.35 |
| 250+ | $0.30 | $0.30 |
| 1,000+ | $0.28 | $0.28 |
| 6,000+ | $0.24 | $0.24 |
| 10,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 2 positions, all loaded, in a single row.
The pitch is 3.96mm (0.156").
The voltage rating is 600VAC.
The header is through-hole mounted, right-angle orientation.
The operating temperature range is -55°C to 105°C.
The contact finish is tin.
The insulation material is thermoplastic, glass filled, rated UL94 V-0, natural color.
