| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Centerline | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Mating Area Plating Material Finish | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

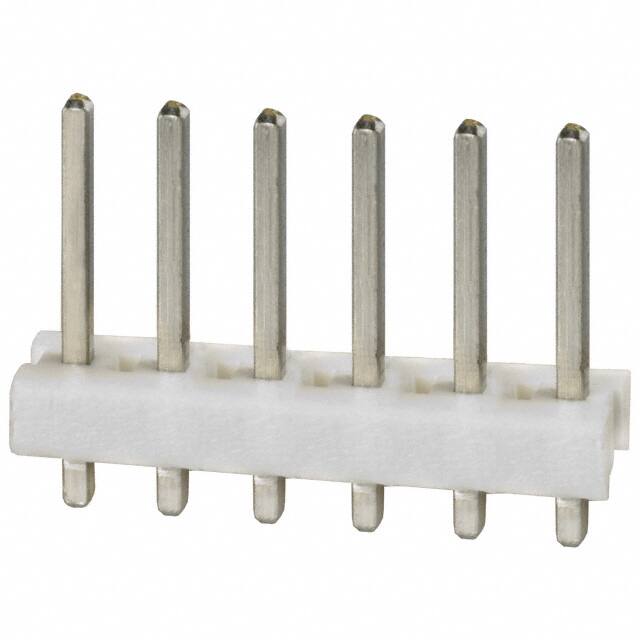

The TE Connectivity 640383-6 is a 6-position, single-row header from the MTA-156 series. It is designed for board-to-cable/wire applications and features a 3.96mm pitch. The connector is through-hole mounted with solder termination.
The header has unshrouded square pins made of copper alloy with a tin-plated matte finish. The overall contact length is 0.650 inches (16.51mm). The insulation material is glass-filled thermoplastic with a natural color and a flammability rating of UL94 V-0. The operating temperature range is -55°C to 105°C.
The voltage rating is 600VAC, while current rating varies by wire gauge. The connector is suitable for power applications in industrial and consumer electronics. It is RoHS3 compliant and REACH unaffected.
The through-hole mounting type allows for robust solder connections. The part is available in bulk packaging. Mating products are available from the same series.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.56 | $0.56 |
| 10+ | $0.47 | $0.47 |
| 25+ | $0.45 | $0.45 |
| 100+ | $0.40 | $0.40 |
| 250+ | $0.36 | $0.36 |
| 1,000+ | $0.31 | $0.31 |
| 3,000+ | $0.27 | $0.27 |
| 10,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 6 positions.
The pitch is 3.96mm.
The voltage rating is 600VAC.
Through hole with solder termination.
Varies by wire gauge; consult the datasheet for specific wire gauge ratings.
-55°C to 105°C.
Copper alloy contacts with tin (matte) plating.
