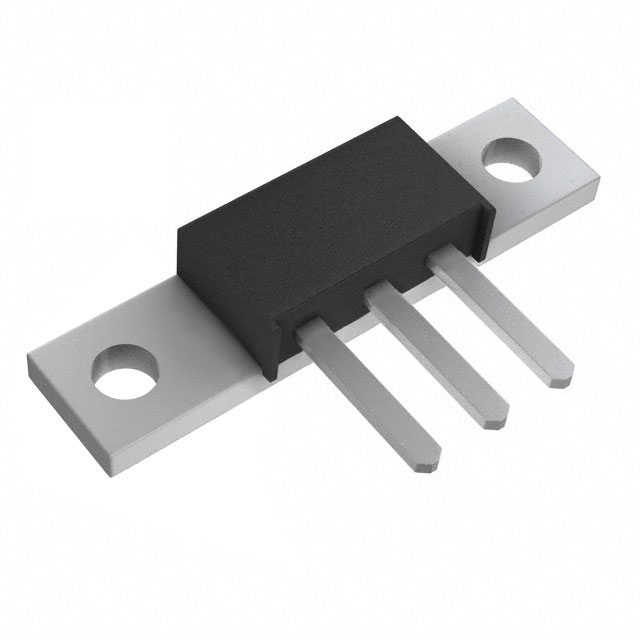

The 63CNQ080 is a Schottky rectifier from SMC Diode Solutions, featuring a common cathode configuration with two diodes in a single PRM3 package. It is rated for a peak repetitive reverse voltage of 80V and an average rectified forward current of 30A per leg (60A per device). The device offers a low forward voltage drop of 0.76V typical at 30A and 25°C, and a high junction operating temperature up to 175°C.
Designed for high-frequency operation, the 63CNQ080 includes a guard ring for enhanced ruggedness and long-term reliability. It is capable of handling non-repetitive surge currents up to 750A per leg and features a maximum voltage rate of change of 10000 V/µs. The thermal resistance junction-to-case is 0.5°C/W per leg and 0.25°C/W per package.
The device is mounted via through-hole and is supplied in a PRM3 package. It is Pb-Free and suitable for applications such as switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
| Qty | Low | High |
|---|---|---|
| 1,056+ | $16.98 | $16.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak repetitive reverse voltage is 80V.
The average rectified forward current per leg is 30A at TC=155°C with 50% duty cycle.
At 25°C and 30A, the typical forward voltage drop is 0.76V, maximum 0.80V.
It is available in a PRM3 through-hole package.
The junction and storage temperature range is -55°C to 175°C.
