| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,050 pcs
|
3050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style |

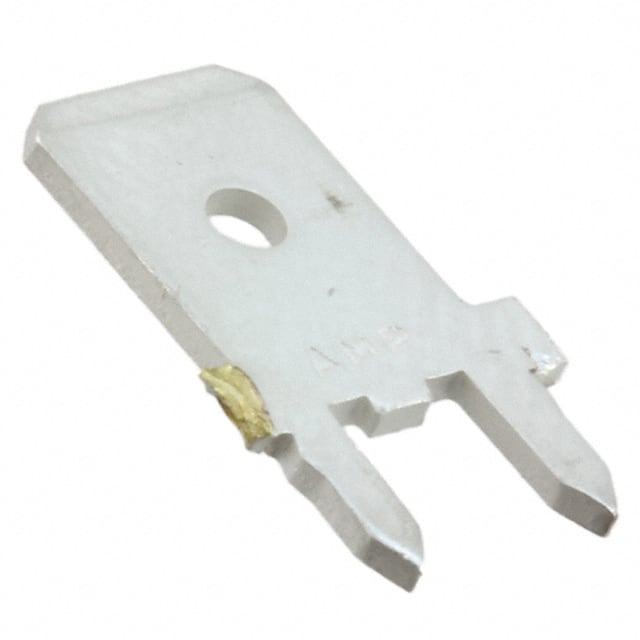

The TE Connectivity 63986-1 is a standard quick connect tab terminal designed for reliable electrical connections. This male tab features a tab width of 0.250 inches (6.35mm) and a tab thickness of 0.032 inches (0.81mm), with a tab length of 0.312 inches (7.92mm). The overall length of the terminal is 13.89mm (0.547 inches).
Constructed from brass with a tin finish, the 63986-1 offers good conductivity and corrosion resistance. It is a non-insulated terminal, making it suitable for applications where insulation is not required. The through hole mounting style and solder termination ensure a secure permanent connection to the circuit board.
This terminal is part of TE Connectivity's extensive line of quick disconnect connectors, commonly used in automotive, industrial, and consumer electronics. It is RoHS compliant and has a moisture sensitivity level of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.13 | $0.13 |
| 10+ | $0.11 | $0.11 |
| 25+ | $0.10 | $0.10 |
| 50+ | $0.10 | $0.10 |
| 100+ | $0.09 | $0.09 |
| 250+ | $0.09 | $0.09 |
| 500+ | $0.08 | $0.08 |
| 1,000+ | $0.08 | $0.08 |
| 2,500+ | $0.07 | $0.07 |
| 10,000+ | $0.07 | $0.07 |
| 20,000+ | $0.06 | $0.06 |
| 30,000+ | $0.06 | $0.06 |
| 50,000+ | $0.06 | $0.06 |
| 70,000+ | $0.06 | $0.06 |
| 100,000+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.250" (6.35mm)
Through hole
Brass with tin finish
No, it is non-insulated
13.89mm (0.547")
Male
Solder
