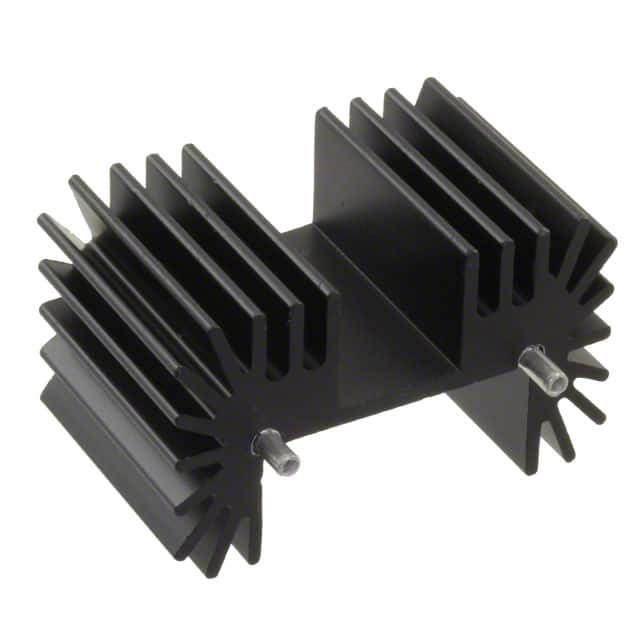

The 6396BG is a board level heat sink from the 6390 series by Aavid, Thermal Division of Boyd Corporation. It is designed to cool TO-218 and TO-220 semiconductor packages. The heat sink is constructed from extruded aluminum with a black anodized finish. Its dimensions are 25.40mm in length, 41.91mm in width, and 25.40mm in fin height. It can be mounted in either horizontal or vertical orientation using bolt-on and PC pin attachment methods. A mounting kit is required for device attachment. The thermal resistance is 5.60°C/W in natural convection and 1.50°C/W at 600 LFM forced air flow. Power dissipation is rated at 4.0W for a 30°C temperature rise. The heat sink is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $6.56 | $6.56 |
| 10+ | $5.80 | $5.80 |
| 25+ | $5.53 | $5.53 |
| 50+ | $5.33 | $5.33 |
| 100+ | $5.14 | $5.14 |
| 360+ | $4.80 | $4.80 |
| 720+ | $4.62 | $4.62 |
| 1,080+ | $4.52 | $4.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It cools TO-218 and TO-220 packages.
Yes, it is RoHS3 compliant.
5.60°C/W.
Aluminum with a black anodized finish.
Length 25.40mm, width 41.91mm, fin height 25.40mm.
It can be mounted horizontally or vertically using bolt-on and PC pin methods.
Yes, a mounting kit is required for device attachment.
