| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Cable Type | |
| Conductor Material | |
| Conductor Plating | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Resistance | |
| Insulator Color | |
| Insulator Material | |
| Jacket (Insulation) Material | |
| Jacket Color | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Number of Conductors | |
| Operating Temperature | |
| Pitch | |
| Rated Current | |
| Ratings | |
| Ribbon Thickness | |
| Ribbon Width | |
| SVHC Present | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Wire Gauge | |
| Withstanding Voltage |

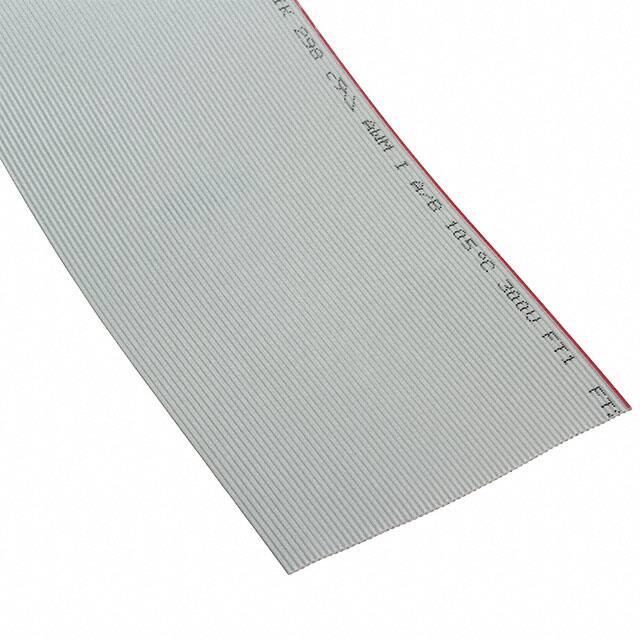

The Würth Elektronik 63916415521 is a WR-CAB series flat ribbon cable featuring 64 conductors on a 1.27mm pitch. Each conductor is 28 AWG stranded tinned copper with 7 strands of 0.13mm diameter, insulated with gray PVC. The first conductor is marked with a red stripe for easy identification. The cable is unshielded and rated for 300V with a maximum current of 1A per conductor. It operates over a temperature range of -25°C to 105°C.
This cable is UL Style 2651 rated and meets VW-1 flame test requirements. Electrical characteristics include a characteristic impedance of 105 ohms, signal delay of 4.65 ns/m, and unbalanced capacitance of 56 pF/m. The cable is supplied on a tape and reel package with a length of 250 feet (76.20m).
Designed for general electronic equipment, this ribbon cable is suitable for internal wiring, data transmission, and board-to-board connections where multiple parallel conductors are required. The 1.27mm pitch is compatible with standard IDC connectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $370.99 | $370.99 |
| 5+ | $340.07 | $340.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 300V.
The operating temperature range is -25°C to 105°C.
Yes, it is RoHS compliant per 2011/65/EU and 2015/863.
The pitch is 1.27mm (0.050 inches).
The conductor is 28 AWG stranded tinned copper with 7 strands of 0.13mm diameter.
The cable length is 250 feet (76.20 meters).
No, this cable is unshielded.
