| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22,000 pcs
|
22000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accepts Wire Insulation Diameter Range | |
| Barrel Type | |
| China RoHS | |
| Contact Finish | |
| Contact Material | |
| Crimp Type | |
| ELV | |
| Gender | |
| Insulation | |
| Line | |
| Mating Retention Type | |
| Mounting Type | |
| Operating Temperature Range | |
| Overall Length | |
| Packaging Method | |
| Packaging Quantity | |
| Quick Disconnect Insertion Force | |
| Quick Disconnect Terminal Orientation | |
| Receptacle Terminal Stock Thickness | |
| SVHC Present | |
| Sealable | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Wire Gauge | |
| Wire Insulation Support | |
| Wire size |

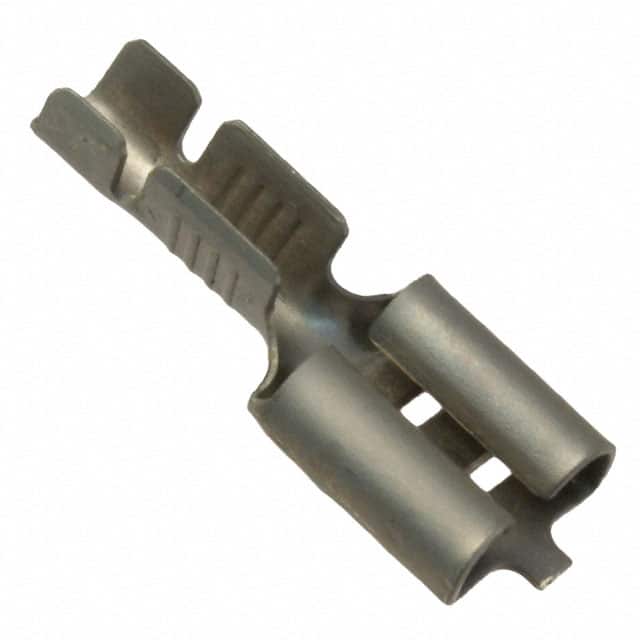

The TE Connectivity 63688-1 is a FASTON 250 quick disconnect receptacle designed for 14-18 AWG wire. It is a non-insulated, female receptacle with a 0.250" (6.35 mm) mating tab width and 0.032" (0.81 mm) tab thickness. The contact is made of steel with a nickel plating, providing reliable electrical performance and corrosion resistance.
This receptacle features an F-crimp termination with an open barrel and includes wire insulation support. The mating retention is achieved via a dimple, ensuring secure connection. The operating temperature range is -40°C to 250°C, making it suitable for a wide range of environments.
The component is rated for normal insertion force and is non-sealable. It is designed for free hanging (in-line) mounting. The terminal is RoHS, REACH, and ELV compliant, and is low halogen.
Packaged in strip/reel format with 11,000 pieces per reel, this part is ideal for high-volume manufacturing.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.21 | $0.21 |
| 11,000+ | $0.08 | $0.08 |
| 33,000+ | $0.07 | $0.07 |
| 44,000+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts 14-18 AWG wire, corresponding to a wire size of 0.82–2.08 mm².
The mating tab width is 0.250" (6.35 mm).
The operating temperature range is -40°C to 250°C.
Yes, it is EU RoHS Directive 2011/65/EU compliant.
The contact material is steel with a nickel plating.
11,000 pieces per reel in strip/reel packaging.
No, it is non-insulated.
