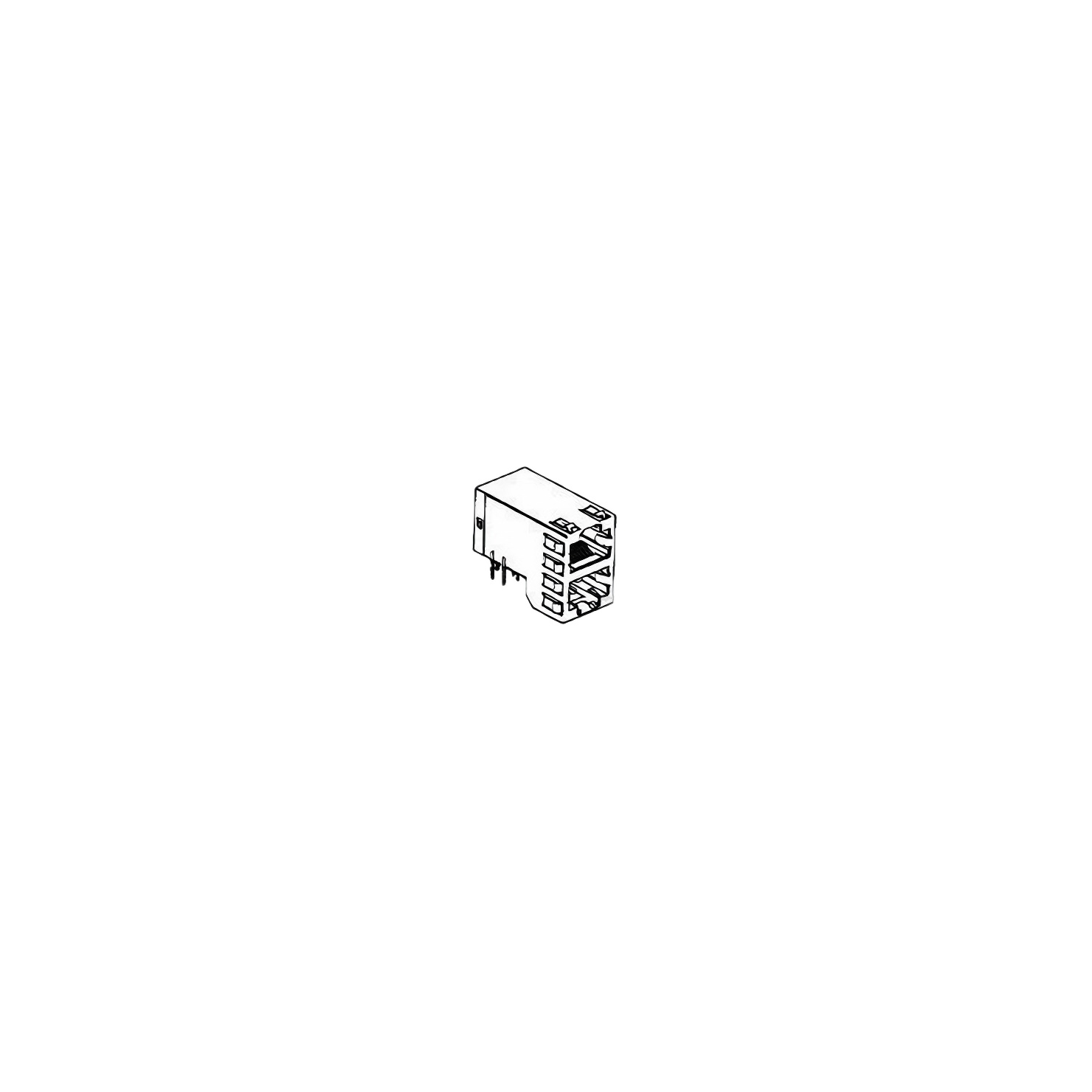

6368168-8 The TE Connectivity 6368168-8 is a 2-port, 8p8c (RJ45) modular jack with right-angle orientation and shielded EMI-finger design. It supports board edge, panel mount, and through-hole mounting with compliant pin termination.
Mfr Part #:

6368168-8

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity 6368168-8 is a 2-port, 8p8c (RJ45) modular jack with right-angle orientation and shielded EMI-finger design. It supports board edge, panel mount, and through-hole mounting with compliant pin termination.
✓ Total Stock: 8 pcs

6368168-8 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

6368168-8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
Housing Material
LED Color
Lead Style
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Termination
Termination Style
View Similar Products (0)

6368168-8 Description

Short technical summary and product information.

The TE Connectivity 6368168-8 is a 2-port 8p8c (RJ45) modular connector jack designed for Cat5 Ethernet applications. It features a right-angle orientation and shielded construction with an EMI finger, and is offered with board edge, panel mount, or through-hole mounting options.



The jack has 8 positions arranged in 2 rows, with tab direction up and down for secure latching. It includes a board guide and offset latch. The contact material is phosphor bronze with gold finish, while the housing is molded from PBT polyester rated UL 94V-0. The shield is copper alloy plated with nickel.



This component does not contain LED indicators and has no grounding clip. It is lubricated with Bellcore approved lubricant per GR-1217-CORE and its jack cavity conforms to FCC Part 68 Subpart F. Termination is via compliant pin (Action Pin) contacts per the datasheet.

6368168-8 Quick Information

Product Type: Modular Connector Jack
Series: 6368168
Canonical Name: Modular Connector Jack 8p8c (RJ45), 2-Port, Right-Angle, Shielded
Subcategory: Modular Connector Jacks

6368168-8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

6368168-8 Features

  • Two-port 8p8c RJ45 modular jack.
  • Right-angle 90° orientation for low profile.
  • Shielded with EMI finger shield.
  • Gold-plated phosphor bronze contacts.
  • UL94V-0 PBT polyester housing.

6368168-8 Applications

  • For board edge or panel mount design.
  • Used in Cat5 Ethernet applications.
  • Right-angle orientation saves board space.
  • Shielded for EMI-sensitive equipment.

6368168-8 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 6368168-8 have?

It has 8 positions configured as 8p8c (RJ45, Ethernet).

What mounting options are available?

Board edge, panel mount, and through hole mounting with right-angle 90° orientation.

How many ports does this connector provide?

Two ports.

Does the jack include shielding?

Yes, it is shielded with an EMI finger.

Does the connector include LEDs?

No, it does not contain LED indicators.

What are the contact and housing materials?

Contacts are phosphor bronze with gold finish; housing is PBT polyester rated UL 94V-0.

What termination style is used?

The datasheet specifies compliant pin (Action Pin) termination; existing database also lists solder termination.
