| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,025 pcs
|
2025 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Positions/Contacts | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

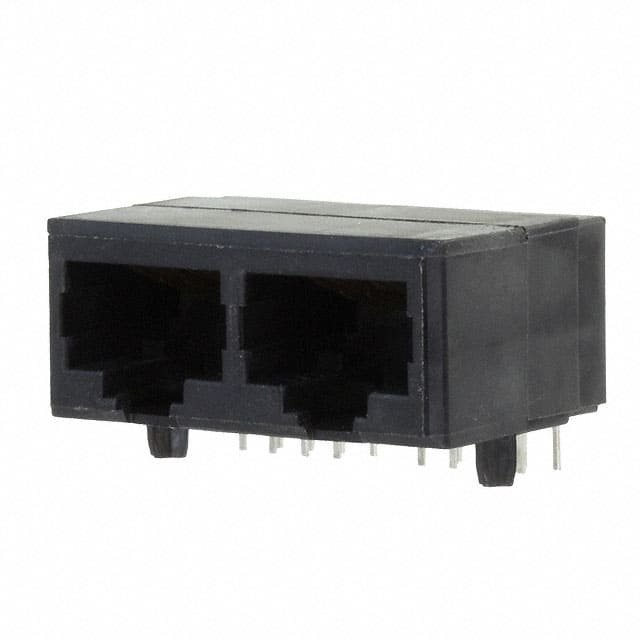

The TE Connectivity 6368120-1 is a modular connector jack designed for Ethernet and networking applications supporting Cat5 performance. It features two RJ45 8p8c ports in a single 1-row configuration, with a right angle (90°) orientation and through hole mounting for secure attachment to a PCB.
This unshielded jack uses solder termination and includes a board guide for easier alignment during assembly. The contacts are made of phosphor bronze with a gold finish, providing reliable conductivity and corrosion resistance. The tab direction is down, consistent with standard RJ45 connector designs.
The part does not contain any LEDs. Its rated category is Cat5, suitable for 100 MHz networks. The housing is intended for applications where board space is limited, offering two ports in a compact footprint.
| Qty | Low | High |
|---|---|---|
| 2,025+ | $3.12 | $3.12 |
| 4,050+ | $2.90 | $2.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a modular connector jack with RJ45 8p8c configuration.
It has 2 ports.
It is a through hole mounting component.
No, it is unshielded.
It has a 90° right angle orientation.
It is rated for Cat5 (Category 5) performance.
